Analog Multimetre 310 18 aralıklı AC/DC 1200 Volta kadar TRIPLETT
Analog Multimetre 310 18 aralıklı AC/DC 1200 Volta kadar TRIPLETT

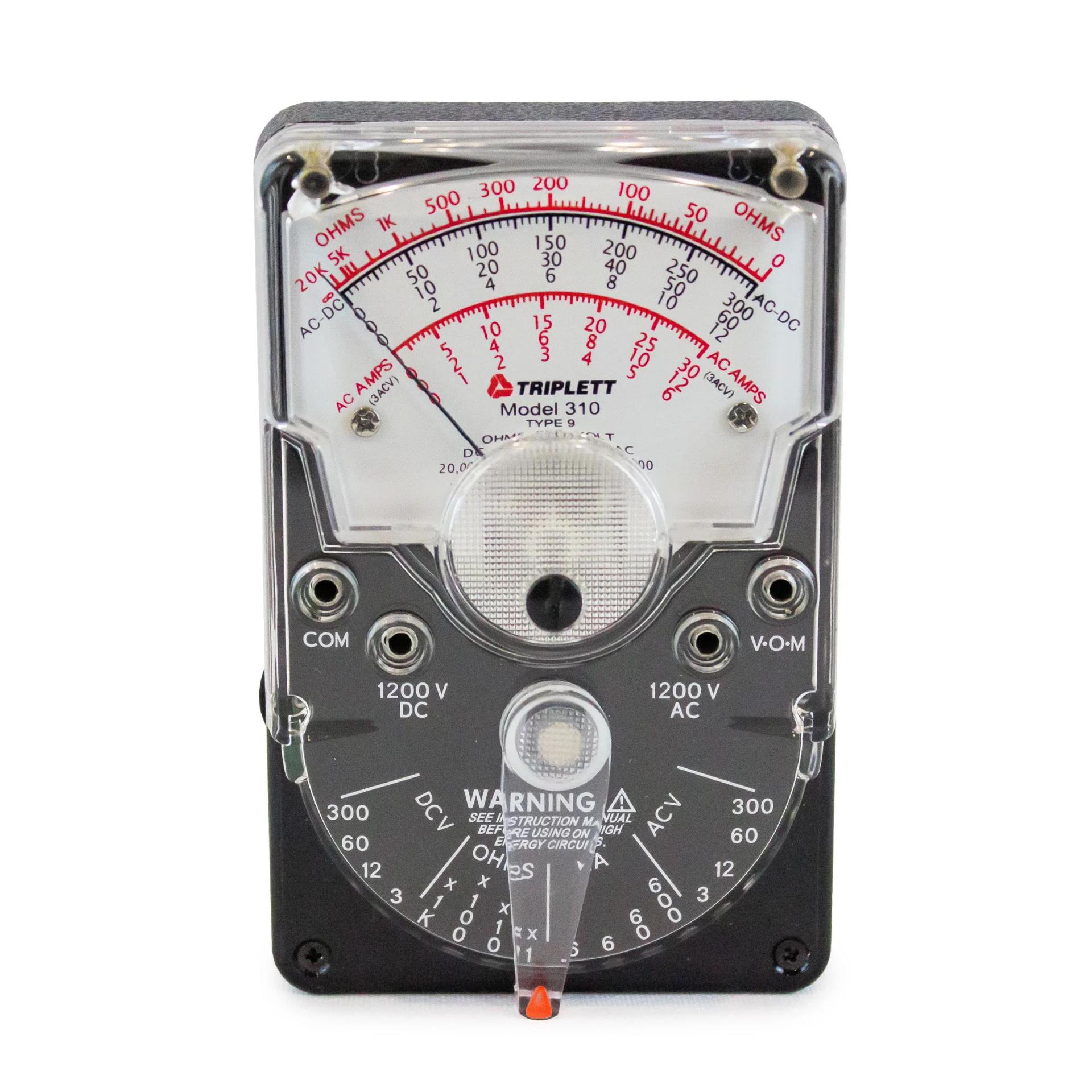

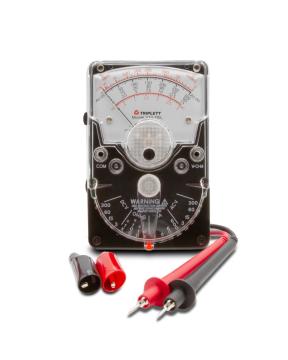

The Triplett Model 310 is a hand-sized analog multimeter with all of the
versatility and performance of larger, more expensive bench-size
models. It offers a diode overload protection against damage to the
meter movements caused by accidental overloads. A fuse is used to
protect the RX1 range. The fuse and batteries can be easily replaced by

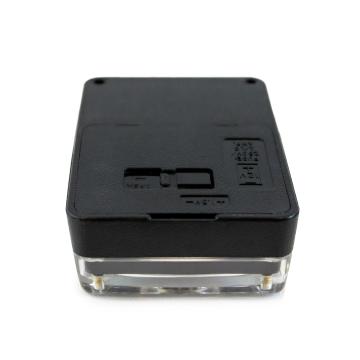

removing the back cover. Small enough to be carried in your tool box,
glove compartment, brief case, or shirt pocket, the Model 310 features
20,000 ohms per volts DC sensitivity and 5,000 ohms per volt AC.
Versatility and readability have not been sacrificed in order to provide
a portable VOM. This model has 18 different ranges that can be easily
read on only 3 clearly defined scale areas. A single selector
switch allows you to switch easily from range to range and function to
function. Include test leads, alligator clips and batteries. 3-year
warranty.
| Specifications | Range | Accuracy |
| AC Voltage | 3V, 12V, 60V, 300V, 1200V (5kΩ/Volt) | ±4% FS |
| DC Voltage | 3V, 12V, 60V, 300V, 1200V (20kΩ/Volt) | ±3% FS |
| DC Current | 0.6mA, 6mA, 60mA, 600mA | ±3% FS |
| Resistance | 20kΩ, 200kΩ, 2MΩ, 20MΩ | ±3% |
| Polarity reversing | Switchable | |
| Dimensions | 2.75 x 1.3 x 4.25" (69.8 x 33 x 108mm) | |
| Weight | 7.2 oz. (204g) |

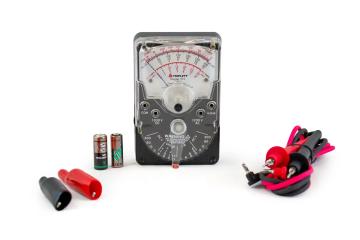

Paketde gelenler:
- Analog Multimer Model 3018

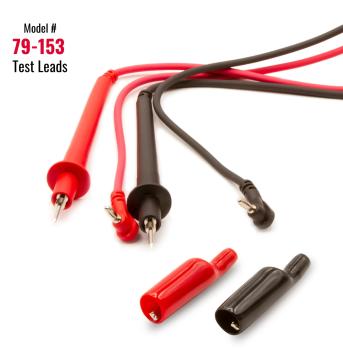

- Test leads
- Alligator clips
- (1) 12V A23
- (1) 1.5V size N batteries
Compact, Precision Analog Multimeter
The Triplett Model 310 is a hand-sized analog multimeter with all of the versatility and performance of larger, more expensive bench-size models.
Versatility and readability have not been sacrificed in order to provide a portable VOM.
Small enough to be carried in your tool box, glove compartment, brief case, or shirt pocket, the Model 310 features 20,000 ohms per volts DC sensitivity and 5,000 ohms per volt AC.
At a glance:
- 18 Ranges and Functions
- AC/DC Voltage Measurement to 1200V
- Drop resistant high impact case
- Fused Resistance ranges
- Includes test leads, alligator clips and batteries
Triplett Solutions for Every Technician
|
|
|
|
|---|---|---|
Overload ProtectionIt offers a diode overload protection against damage to the meter movements caused by accidental overloads. |
18 RangesThis model has 18 different ranges that can be easily read on only 3 clearly defined scale areas. A single selector switch allows you to switch easily from range to range and function to function. |
Fused Resistance RangesA fuse is used to protect the RX1 range. The fuse and batteries can be easily replaced by removing the back cover. |
