AS-SCHNEIDER F Serisi Test Bağlantısız 3 vanalı Manifoldlar
Kategori
Marka
Stok Kodu
F-Serisi 3 Vanalı Manifold, Test Bağlantısız
Garanti Süresi
12 Ay
3 Valve Manifolds Without Test Connection
AS-Schneider F Series 3 Valve Manifolds are designed, manufactured and tested with respect to the relevant standards applicable in this field. The manifolds are for direct mounting according to DIN EN 61518 (IEC 61518). The standard inlet connections are G 3/8 female threaded with fitted tube fittings or butt weld ends. The below mentioned manifolds have no test ports.
The manifolds are provided, as standard, with internal stem threads.
Bore Size: 0.197" (5 mm) or 0.315" (8 mm)

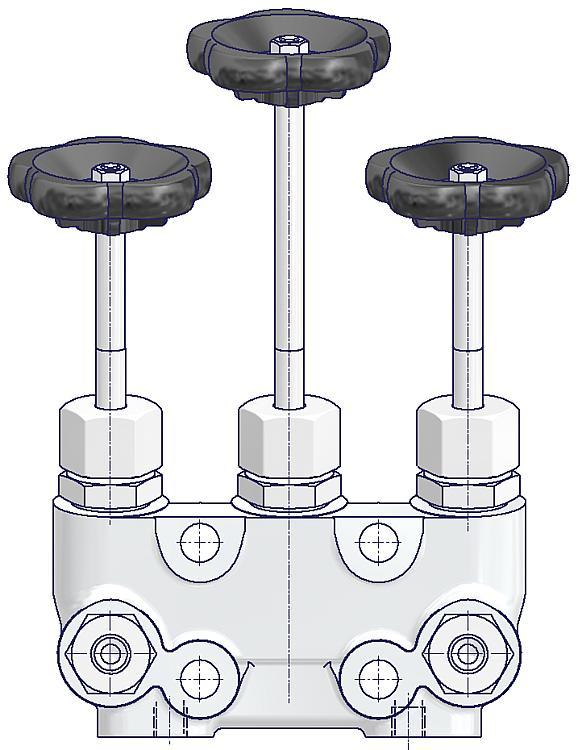

Handwheel operated

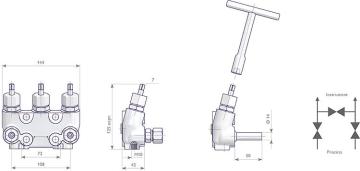

| Inlet | Outlet | Bore Size DN (mm) |
Material | Part Number |
| Tube Fitting Size 12S | IEC 61518 Type A |
5 | 1.0460 | S541.36.123 |
| 1.4571 | S541.36.223 | |||
| Tube Butt Weld End Ø 14 x 2.5 |
1.0460 | S541.36.133 | ||
| 1.4571 | S541.36.233 |

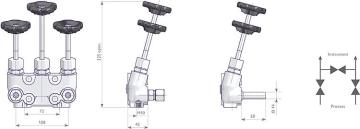

| Inlet | Outlet | Bore Size DN (mm) |
Material | Part Number |
| Tube Fitting Size 12S | IEC 61518 Type A |
5 | 1.0460 | S541.36.125 |
| 1.4571 | S541.36.225 | |||
| Tube Butt Weld End Ø 14 x 2.5 |
1.0460 | S541.36.135 | ||
| 1.4571 | S541.36.235 | |||
| Tube Fitting Size 12S | 8 | 1.0460 | N541.86.106.01 | |
| 1.4571 | N541.86.206.01 | |||
| Tube Butt Weld End Ø 14 x 2.5 |
1.0460 | N541.86.135.01 | ||
| 1.4571 | N541.86.235.01 |
