Basınç Transmiteri Genel Endüstri için M20
Genel Endüstri için M20 Basınç Transmiteri

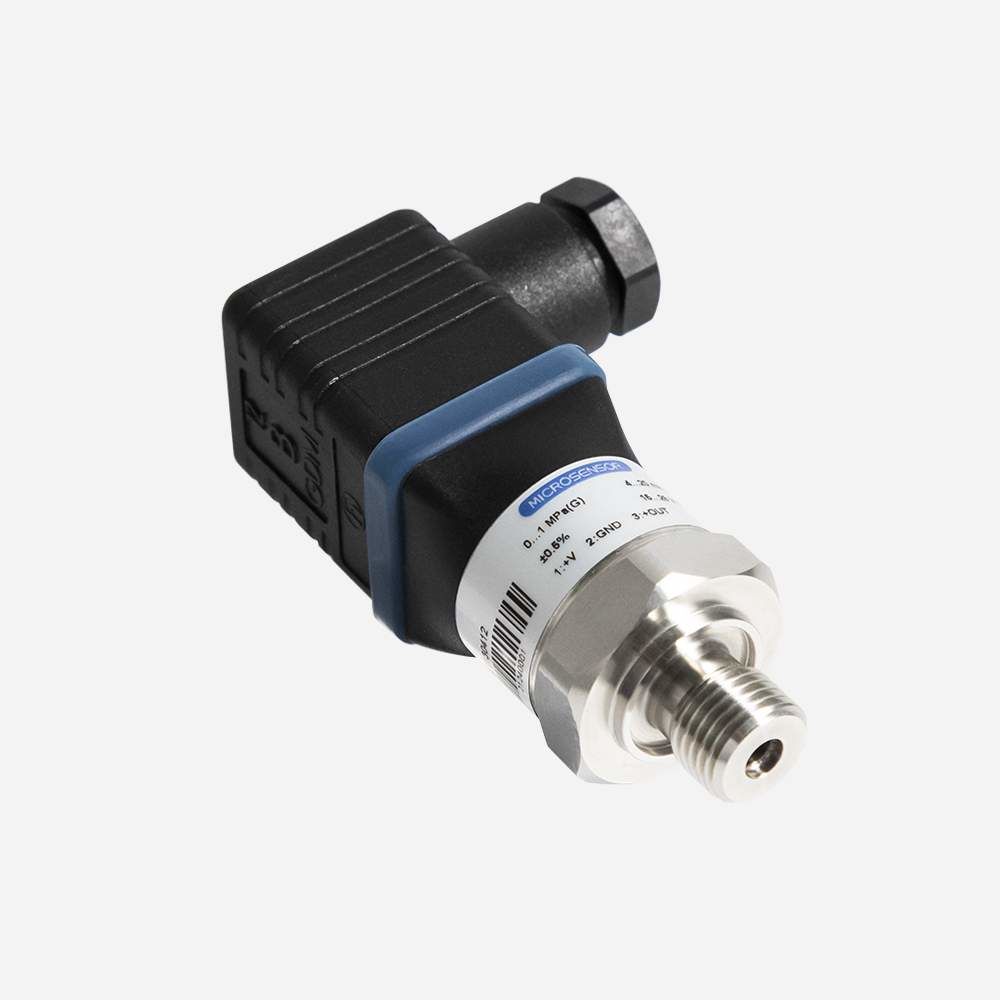

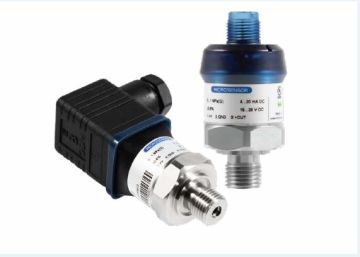

M20 pressure transmitter has precise design, highly integrated electrical structure,full digital temperature compensation and calibration, exquisite materials, good electromagnetic compatibility design. It is highly cost-effective
while achieving high reliability. M20 pressure transmitter has many international certifications. It has many different and flexible selections and options. It is suitable for various pressure monitoring and measurements general industrial occasions.
ISO 9974-2/EN 837 ISO 1179-2
ANSI/ASME B1.20.1
ISO 7
Specification
• Pressure Type: Gauge, Absolute, Positive/Negative
• Pressure Range: 0kPa ~ 25kPa to 0MPa ~ 25MPa
• Electrical Connection:
Angular Connector DIN 175301-803A
Circular Aviation Plug M12×1(4pin) IEC 61076-2-101
Cable Φ5.0mm 5×0.12mm² Polyurethane
• Accuracy: ±0.5%FS (@25℃ )
• Process Connection: M20×1.5 G1/4A NPT1/4 R1/4 Other threads available on request
• Output: 4mA ~ 20mA DC
0V~ 5V DC
1V~ 5V DC
0V~ 10V DC
0.5V~ 4.5V DC
• Structure Specification: Full welded, molecular sieve
• Medium: Air, water, mixed oil or other fluid that can be
compatible with wetted part
