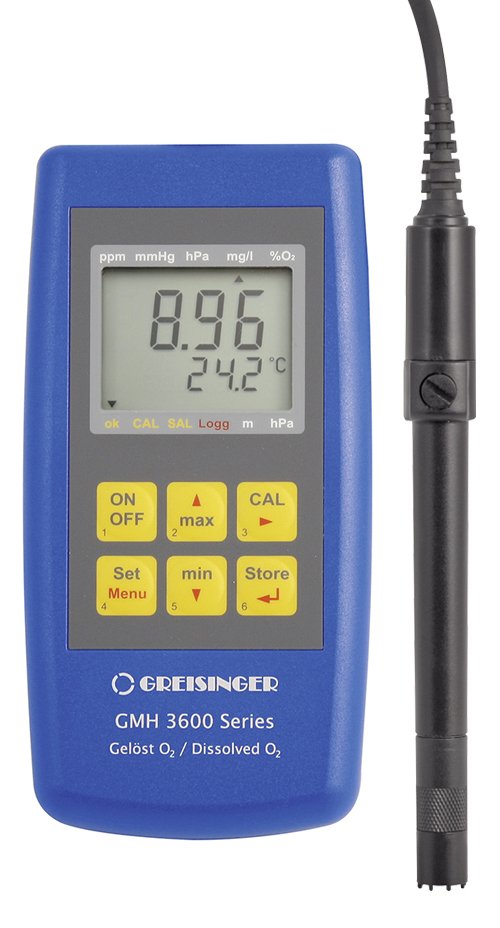

Çözünmüş Oksijen Ölçer, Dataloggerlı 30 m sensör kablolu
HIGHLIGHTS:
- Automatic air pressure compensation
- Salinity correction
- Simple calibration in atmospheric air
SPECIFICATIONS:
Measuring range: (device)
O 2 -concentration:
0.00 ... 70.00 mg / l (ppm) (resolution selectable)
O 2 -saturation:
0.0 ... 600.0 % O 2 (resolution selectable)
O 2 -partial pressure:
0 ... 1200 hPa O 2 (0.0 ... 427.5 mmHg)
Temperature:
0.0 ... 50.0 °C
Pressure:
300 ... 5000 hPa abs. or 0 ... 100.0 m water column* (with pressure port)
Accuracy: (at nominal temperature = 25 °C)
Oxygen :
±1.5 % of mv ±0.2 mg / l (0 ... 25 mg / l) or
± 2.5 % of mv ±0.3 mg / l (25 ... 70 mg / l)
Temperature:
±0.1 °C ±1 digit
Pressure:
±0.5 % FS ±1 digit
±3 hPa or 0.1 % of mv
±2 hPa (750 ... 1100 hPa)
Sensor connection:
6-pin screened Mini-DIN socket
Sensor:
Active membrane type.
Electrode-Ø front:
approx. 12 mm, overall length: approx. 220 mm, anti-buckling glanding, neck collar: Ø approx. 20 mm, 30 m connection cable with Mini-DIN-plug
Response time:
95 % in 10 s, depends on temperature
Operation life:
approx. 3 years, depends on maintenance
Working temperature:
0 ... +40 °C
Working pressure:
max. 3 bar
Operating pressure sensor GWO 3600 max. 3000 hPa rel. or 4000 hPa pay attention to abs.!
flow rate:
min. 30 cm/s
Scope of supply:
Device incl. electrode, GWOK01 and KOH electrolyte, battery, manual
