Data logger Sıcaklık, nem, basınç ve CO2 LOG220E PDF Dostmann Electronic
Data logger Sıcaklık, nem, basınç ve CO2 LOG220E PDF Dostmann Electronic

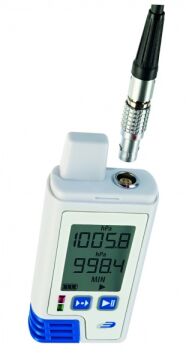

Data logger for temperature, humidity and pressure internal and external connection for a CO2-sensor or temperature, humidity and barometric pressure sensor. Inclusive motion sensor. Integrated USB-interface for automatic PDF-creation, incl. wall mount
Data logger for temperature, humidity and pressure internal and external connection for a CO2-sensor or temperature, humidity and barometric pressure sensor. Inclusive motion sensor. Integrated USB-interface for automatic PDF-creation, incl. wall mount
Memory for 60.000 measurements (60k for each value), useable without software (default settings with 5 minutes interval), automatic PDF creation (no drivers required), optional software download), free adjustable recording interval 10 seconds up to 24 hours (via Software Log Connect), battery lifetime appr. 4 years (recording interval >15 minutes), status- and alarm-LEDs, defeatable display, resettable Max-Min values, time marking functions for measuring results, Motion sensor for shock recording e.g.: door or windows closing
| Measuring range Temperature internal |
-40...+70°C |
| Measuring range temperature externaly (PT100) | -200°C...+850°C |
| Resolution |
0,1°C |
| Accuracy internal |
+- 0,5°C (0...60°C) otherwise + - 1°C |
| Accuracy external (PT100) |
+ - 0,2°C or + - 0,3% (whichever is greater) |
| Measuring range Humidity | 0...100% rH |
| Resolution | 0,1% rH |
| Accuracy | + - 3% rH (40..60%). + - 3,5% (20...40% and 60...80%) otherwise + - 5% |
| Measuring range Pressure | 300...1100 hPa |
| Resolution | 0,1 hPa |
| Accuracy | + - 1 hPa (900...1100 hPa) otherwise 0,5% of the end value |
| Memory |
60.000 measurings (60k for each value) |
| Voltage | 1 x 1/2AA size 3,6 volt |
| Battery life |
appr. 4 years (with an intervall of > 15 min) |
| Dimensions |
91,5 x 42 x 20 mm |
| Weight |
70 g |
