Datalogger AC Voltaj ve Akım Çift kanallı True RMS ACDL200

Kategori
Marka
Stok Kodu
ACDL200
Datalogger AC Voltaj ve Akım Çift kanallı True RMS ACDL200

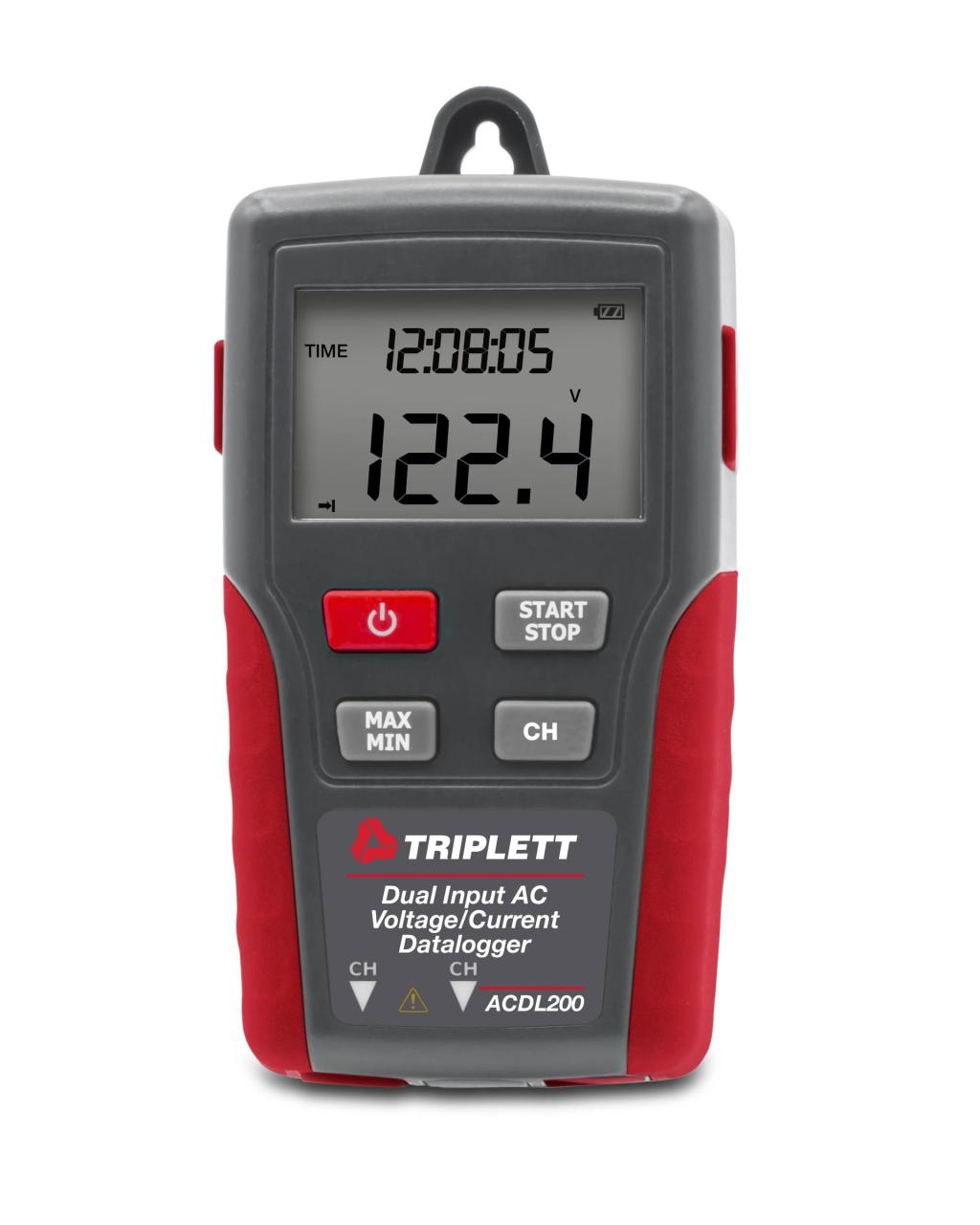

The Triplett Model ACDL200 Dual Input True RMS AC Voltage(600V) /Current (200A) Datalogger can datalog up to 131,000 measurements (dual input) or 256,000 measurements (single input) and provides dual channel recording of TRMS Voltage/Voltage or Current/Current or Voltage/Current using a 1 second to 24 hour selectable sampling rate. Features include a multifunction LCD display, real time clock, and Min/Max recalls highest and lowest readings. Includes 2 sets of Test Leads, 2 Current Clamps, (4) AAA batteries, AC Adapter, and USB cable. 1 year warranty.


  • Datalog up to 256,000 measurements (single input)
        or 131,000 measurements (dual input)
  • Dual channel recording of TRMS Voltage/Voltage
        or Current/Current or Voltage/Current
  • 1 second to 24 hour selectable sampling rate
  • Jaw size 0.5" (12.7mm)
  • Multifunction LCD display
  • Real time clock
  • Min/Max recalls highest and lowest readings
  • Low battery indicator
  • Includes 2 sets of Test Leads, 2 Current Clamp, (4) AAA batteries,
        AC Adapter, and USB cable
  • 1 year warranty
  •

    ACDL200
    Channels Two, TRMS AC Voltage/Voltage or
    TRMS AC Current/Current or
    TRMS AC Voltage/Current
    AC Voltage Range
    (40-1kHz)
    10 to 600.0V
    Accuracy ±2%±1V
    AC Current Range (50/60Hz) 10 to 200.0A
    Accuracy ±2%±1A
    Datalogger 256,000 single channel or 131,000 dual channel
    Sample Rate Selectable 1 second to 24 hours
    PC Interface USB port
    Power 4 AAA batteries or AC Adapter
    Safety Category CAT III-600V
    Dimensions 4.5 x 2.5 x 1.3" (114 x 63 x 34mm)
    Weight 8.7oz (248g)
