Digital Pressure Indicator DPI
Digital Pressure Indicator DPI

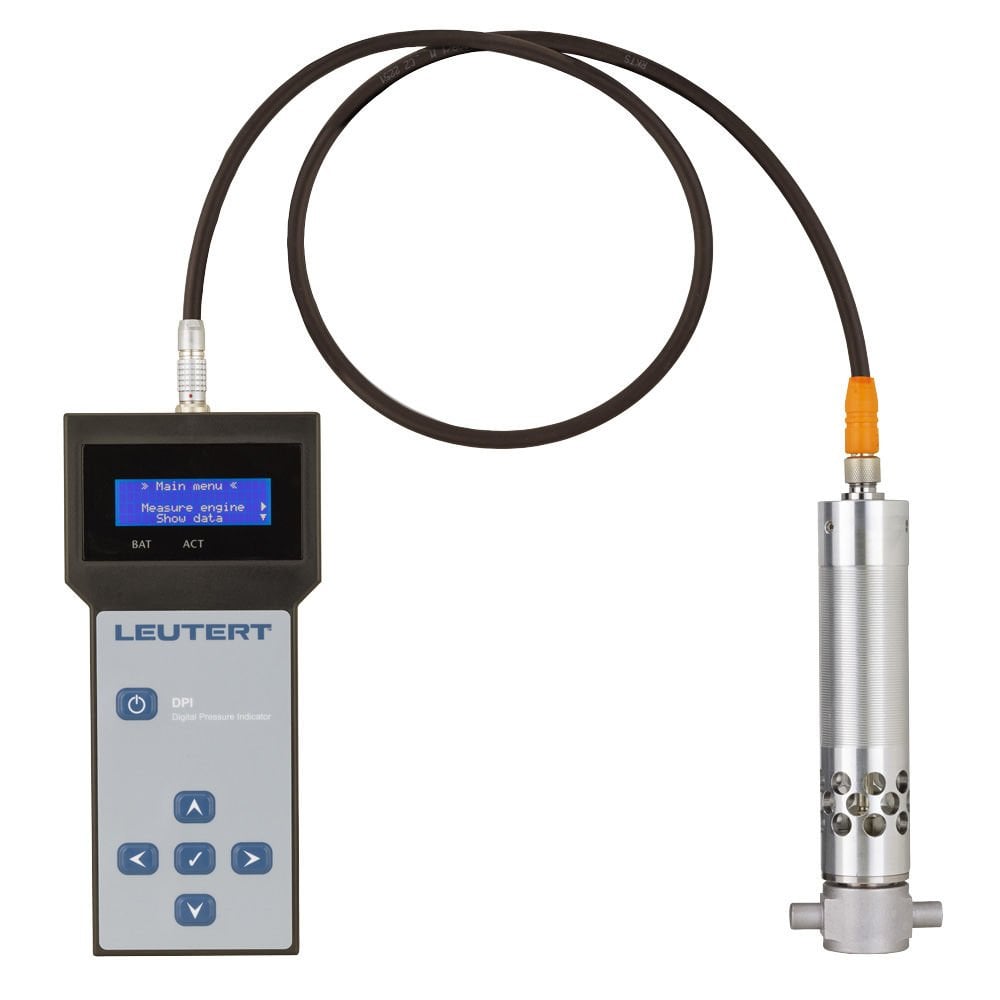

The Digital Pressure Indicator DPI measures dynamic cylinder pressures. It is designed to analyze the internal combustion curve of large two and four stroke diesel engines. The measurement is performed via an indicator valve.

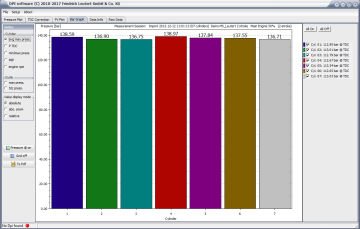

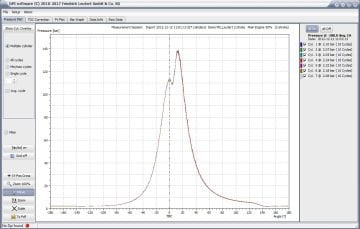

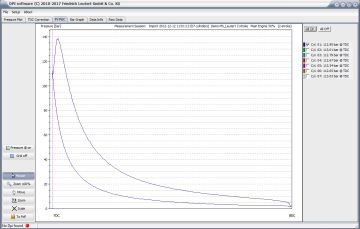

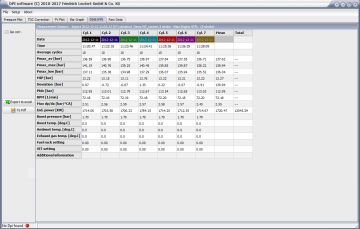

It is a state-of-the-art MIP-system with a very convincing price-performance ratio. The high accuracy data collected by the DPI is essential for optimizing engines’ performance and reducing emissions. The self-explanatory handling of the Leutert pressure indicator allows even unexperienced operators to successfully take measurements in few minutes. The DPI software allows evaluation transmitting (to superintendency), archiving, and much more with only a few clicks.
The DPI is the most straightforward solution to reach optimum performance of your engine.
Features
- No need to install TDC sensors on the engine for power calculation
- Easy handling and Plug’n’Play installation of the soft- and hardware results in less user related problems
- Excellent price-performance ratio
- No copy limitations of the software
- Usage of rechargeable batteries
- Continuous operation of more than 8 hours
- High accuracy

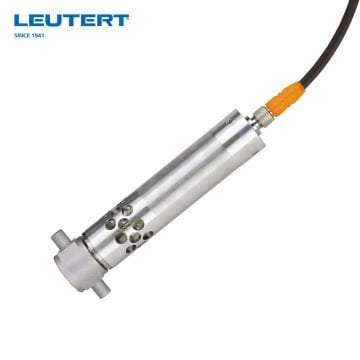

- Usage of a high quality sensor
|
Pressure range: |
0 to 300 bar |
|
Engine range: |
50 to 5,000 rpm |
|
Battery capacity: |
> 8 hrs |
|
Operating temperature: |
Hand-held Unit: 0 to 55 °C |
|
Weight (approx.): |
Hand-held Unit: 0.44 kg |
|
Dimensions: |
Hand-held Unit: 211 x 100 x 45 mm |
|
Accuracy |
< 0.5% |
|
A/D sampling precision: |
16 bit (0.0092 bar/sample) |
|
Memory capacity: |
50 engines, 24 cylinders each |
|
Battery type: |
Standard AA (4 pcs.), rechargeable |
|
Battery charging: |
via USB or adapter |
|
Display: |
20 x 4 alphanumeric, backlight, high contrast |
|
Standard connection: |
W 27 x 1/10" |
