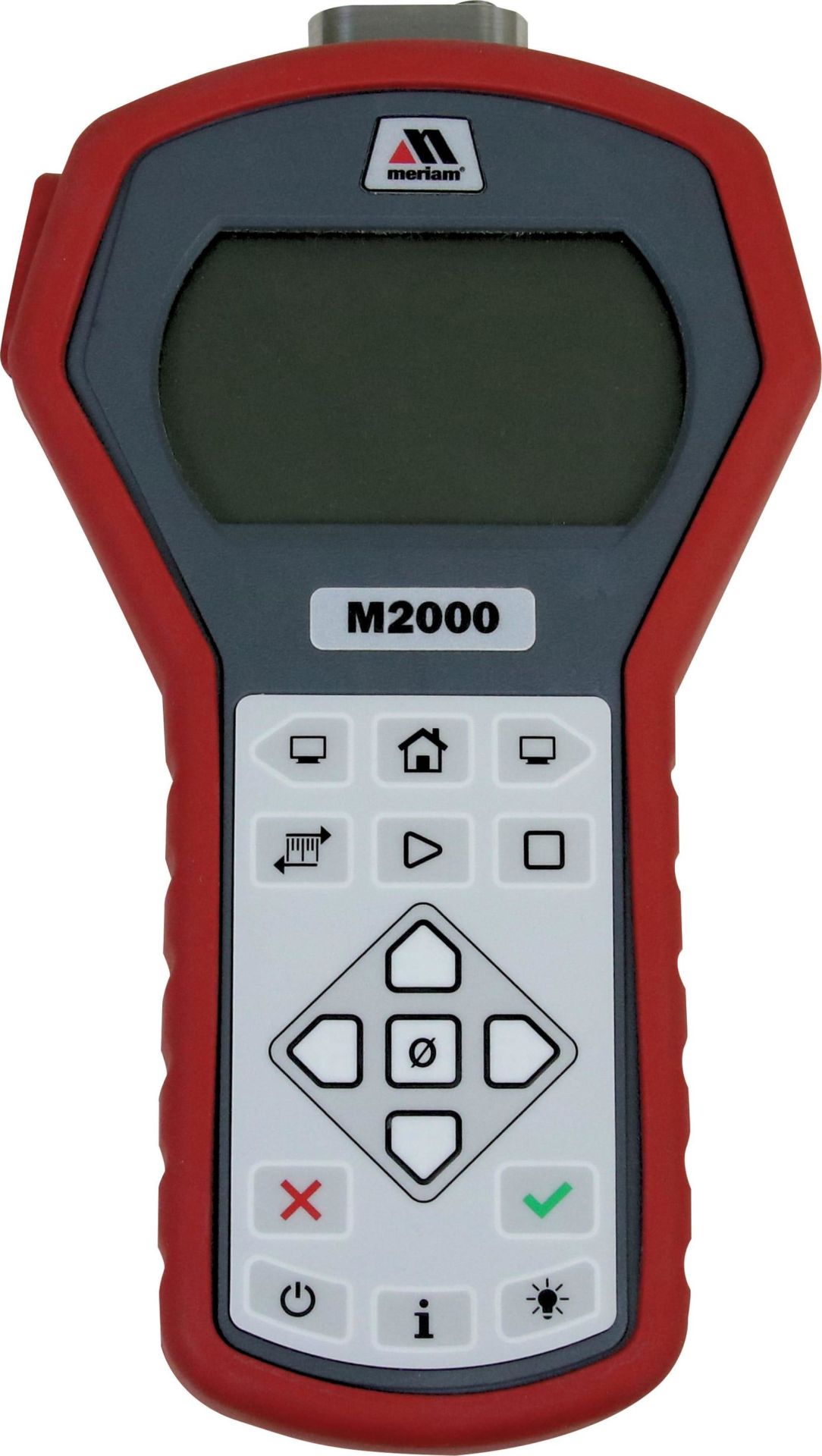

Meriam M2000 is a portable pressure instrument with flexible features to meet many
of your everyday pressure measurement needs. This device features an easy and intuitive user interface with convenient pressure connections.
316SS media isolated pressure sensors to suit a wide range of applications
▪ Common features include damping to stabilize fluctuating pressure signals and
data logging for easy measurement capture
▪ This device ships with calibration certificate traceable to NIST

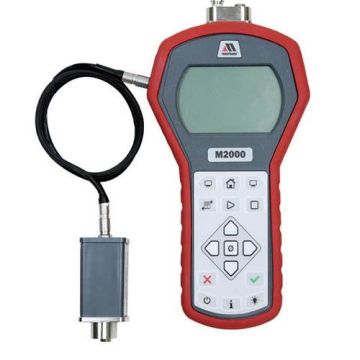

▪ M2000 can use a second sensor with the MTS Series of Tethered Modules
(Pressure & Temperature)
▪ Intrinsically Safe options available
Features on M2000
▪ Mobile data logging - no computer required while taking measurements
▪ meriSuite application for configuration, calibration, and data logging
▪ One (1) fixed sensor
▪ Backlight with 4 levels: Off, Low, Medium, High
▪ Battery life display (0 % to 100%)
▪ USB communication
▪ Measure ranges up to: 3000 psi compound, 1000 psi absolute, and 500 psi differential
▪ Min/Max pressure capture
▪ RTD (Temperature) accessory sensor option with MTS
▪ Protective red boot
▪ Optional pressure fittings, hand pump kit, and carrying case
▪ UL Listed
Applications
▪ Pressure Transmitter Calibration
▪ Leak testing for low pressure gas systems
▪ Pressure drop monitoring across filters
▪ Monitoring vacuum on condensers and pumps
▪ Pressure relief valve testing
▪ Hold function to snapshot pressure reading
Add Data Log Pro to the M2000 and MTS to expand data logging capabilities to 128 log files or 100,000 data points. Modify data log options and settings using Data Log Pro tab in meriSuite CG - available with optional MTS.
SPECIFICATIONS
|
Pressure
Accuracy |
-
±
0.020% Full Scale + 0.005% of Reading
|
|
Pressure
ranges
(select
one)
Non-isolated |
-
Compatible
with clean, dry, non-corrosive, gas media
-
0
to 15, 30, 100 psi Absolute
-
-1
to 1, -5 to 5, -14.5 to 15, 30, 50, 100 psi Differential
-
-1
to 1, -5 to 5, -14.5 to 15, 30, 50, 100 psi Compound
|
|
Media-isolated |
-
Gas
and Liquid Media compatible with 316SS
-
0
to 15, 30, 100, 1000 psi Absolute
-
-1
to 1, -5 to 5, -14.5 to 15, 30, 50, 100, 300, 500 psi
Differential
-
-14.5
to 15, 30, 50, 100, 300, 500, 1000, 3000 psi Compound
|
|
Measurement
Units |
-
Offering
over 30 measurement units including psi, kPa, mmHg, inH₂O,
mbar, and user defined units - available with optional MTS
|
|
Display
Resolution |
-
Up
to 6 digits depending on pressure unit selected
|
|
Temperature
Specifications |
-
Storage:
–20 °C to 70 °C (–4 °F to 158 °F)
-
Operating:
–10 °C to 50 °C (14 °F to 122 °F)
|
|
Dimensionswith
boot |
-
Length
9.8 in (248.9 mm) from manifold to end of boot
-
Width
5.2 in (132.1 mm) at widest point with boot
-
Thickness
2.3 in (58.4 mm)
|
|
Connections |
-
1/8”
Female NPT 316SS USB
-
Meriam
Tethered Sensor (MTS) Port
-
USB
|
|
Power |
-
4
AA batteries
|
|
MTS
RTD Specifications |
Temperature
Probe Accuracy
-
IEC
60751 PT100 class A
-
Tolerance
= ± (0.15 + 0.002 |t|) °C
-
Probe
measurement range: -50 °C to 250°C
|
