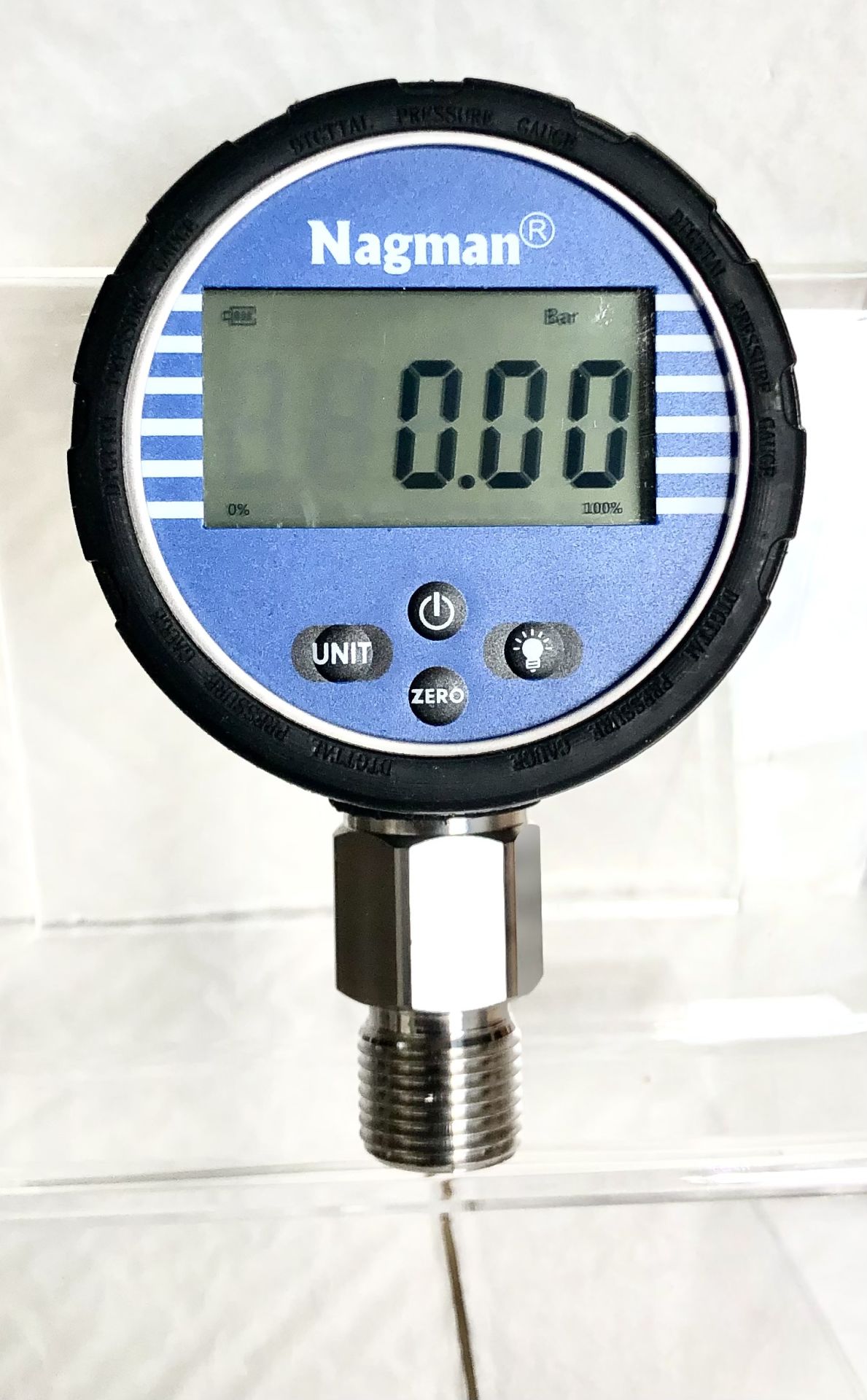

Dijital Manometre Hassas MPCE-IN 200 Serisi Nagman
Dijital Manometre Hassas MPCE-IN 200 Serisi Nagman
Pneumatic / Hydraulic
Model: MPCE-IN 200 Series
Portable / Handheld
Ideal Lab/Site Tool for checking & Calibration of Pressure Gauges, Receiver Gauges & Loops etc.
SALIENT FEATURES:
4 Full Digit High Contrast Customized LCD Display
7 Engineering Units
Over Pressure Protection: 150% of specified Range
Pressure Transducer – all Media compatible
SPECIFICATIONS:
Ranges
Pneumatic -1 to 2 / 10 / 25/ 35 / 40 / 60 bar
Hydraulic 0 to 70 / 100 / 200 / 350 / 700 / 1000 bar
Accuracy ±0.1% F.S.
Dial Size 80mm
Display 4 Full Digit High Contrast Customized LCD Display
Engineering Units Bar, mmHg, PSI, Kg/cm2, inH2O, Torr, KPA
Pressure Connection 1/2” BSP (M)
Over Pressure Alarm 150% FS (Visual)
Type of Pressure & Media Compatibility
Gauge & Compound Non-Corrosive Dry Gases or Liquid Compatible with Stainless Steel
Stainless Steel
Battery Type 3 VDC Alkaline batteries
Low Battery Indication Provided (Low voltage Alarm)
STANDARD INCLUSIONS:
Pressure Indicator
3 VDC Alkaline Batteries
Traceable Calibration Certificate
Instruction Manual
