Dijital Multimeter CAT IV 600V 3 ¾ Dijit 4000 Count 6-in-1

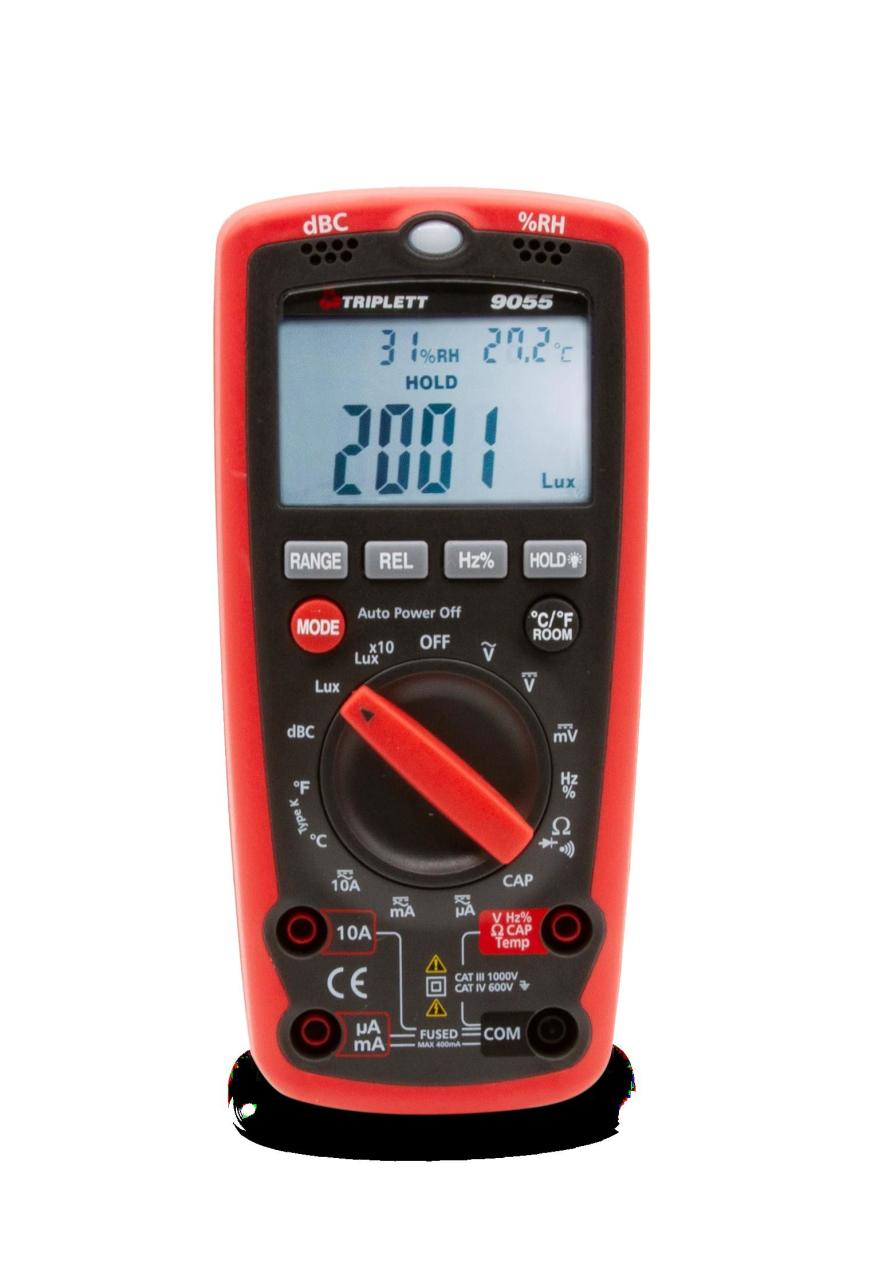

The Triplett Model 9055 is a 3-3/4 digit (4000 count) high performance digital multimeter with an array of environmental functions. It offers over 50 measurement ranges including AC/DC Voltage, AC/DC Current, Resistance, Frequency, Capacitance, Temperature (Type K and ambient), Relative Humidity (RH), Light (LUX), and Sound (dBC). Additional features include an NCV Detector, Continuity, and Diode Test. The rubberized overmolded housing with built-in stand provides impact and drop resistance in a sleek ergonomic design, and the user-friendly Auto Power Off feature helps maximize battery life. With an industry leading CAT IV design, it provides superior resistance to damage from transient overvoltages in any demanding industrial settings. The Model 9055 is suited for a variety of industrial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes test leads, alligator clips, Type K Temperature probe and 9V battery.

53 measurement ranges with Relative Humidity, Light (LUX), and Sound (dBC) measurement

Temperature (Type K and ambient), Frequency and Capacitance measurement

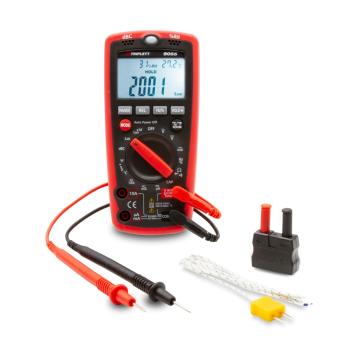

Includes test leads, alligator clips, Type K Temperature probe and 9V battery

Double molded splash proof, dust proof, drop resistant case with built-in stand and CAT IV 600V safety rating

high performance professional multi tester for technicians, security, electric, hvac

The overmolded housing provides impact and drop resistance in a sleek ergonomic package, while the convenient Auto Power Off feature maximizes battery life.

Double molded splash proof, dust proof, drop resistant case
Built-in stand
Rugged Design and Auto Power Off

Triplett Solutions for Every Contractor

53 Measurement Ranges

The 9055 Digital Multimeter offers conventional multimeter measurement features, including AC and DC Voltage and Current, Resistance, Continuity, Diode Test, Capacitance, Frequency, and Duty Cycle.

Well suited for use in all test environments, from occasional use in residential applications to everyday use by installers, home theater technicians, security technicians, electricians, HVAC technicians, and other professionals in the industry.

53 measurement ranges with Relative Humidity, Light (LUX), and Sound (dBC) measurement
Temperature (Type K and ambient), Frequency and Capacitance measurement
Includes test leads, alligator clips, Type K Temperature probe and 9V battery

Triplett Solutions for Every Contractor

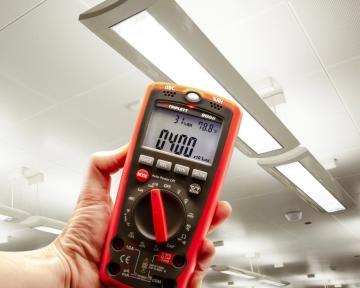

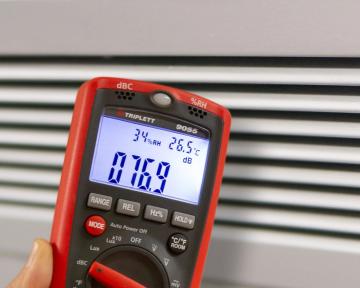

Non-Contact Voltage Sensor Built-in Non-Contact Voltage Sensor detects and indicates the presence of dangerous AC voltages. CAT IV design provides superior resistance to damage from transient overvoltages, such as those experienced in demanding industrial settings.	Light Level The Light Level function measures illumination in Lux on two ranges. Its silicon sensor is very stable and fully cosine-corrected for the angular incidence of light.	Ambient Temp & Humidity Meter Temperature is measurable in the meter itself or at the tip of the provided temperature probe. Relative Humidity is measured and displayed continuously along with the room temperature, providing a convenient reference for all other measurements.	Sound Level The dBC Sound Level function is useful for measuring noise in factories, offices, homes, and other settings, as well as for checking the acoustics of studios, auditoriums, home theater installations, and more.

Specifications	Range
Auto/Manual Ranging	Autoranging
True RMS/Averaging	Averaging
Basic Accuracy	±1.5%
AC Voltage	0.1mV to 600V
DC Voltage	0.1mV to 600V
AC Current	0.1µA to 10A
DC Current	0.1µA to 10A
Resistance	0.1Ω to 40MΩ
Ambient Temperature	32 to 122°F (0 to 50°C)
Type K Temperature	-4 to 1400°F (-20 to 750°C)
Relative Humidity	33 to 99%RH
Capacitance	10pF to 100µF
Frequency	0.001Hz to 10MHz
Light	1 to 40,000Lux
Sound Level	35 to 100dB (C weighting, fast response)
Duty Cycle	5 to 95%
NCV Detector	50 to 1000VAC
Safety Category	CAT IV-600V
Dimensions	6.7 x 3 x 1.8" (170 x 76.2 x 45.7mm)
