Dijital Termometre G1700 serisi
Dijital Termometre G1700 serisi
• Available in 2 versions
- with fixed sensor
-with BNC connection for interchangeable sensors
• Quick and precise measurement
• Waterproof (IP65 / IP67)
• Three-line display / overhead display at the push of a button
• Sensor, incl. cable, temporarily (2 hours) up to 250 °C
• Sensor, incl. cable, continuous use up to 230 °C
• Alarm function
• Hold function for freezing of measurement values,
min / max function for minimum and maximum recorded
measurements
• Adjustable
General information
The primary focus in the development of the new G 1000 series was placed on the essential functions of the measurement technology.
Pure measurement with a focus on precision, speed and reliability
packaged in a compact housing provide for the impressive price performance ratio, Made in Germany.
The new handheld measuring devices also impress with their
ergonomic, dust and water-protected design in accordance with IP
65/67 and the illuminated display.
The compact thermometer is available with a practical BNC connection
for interchangeable sensors or as a complete device including
sensor with maximum overall precision. The device redefines our
entry-level measurement class – calibration log included.
The matching sensors can be used at temperatures of up to 250 °C
(incl. handle and cable) and are distinguished by their compact
design and small tube diameter. High-quality Pt1000 sensors
integrated.
Use
The highest-precision measurements in liquids and in air, for
measurement of core temperatures (with insertion sensor); sensor
handle and cable temperature range of up to 250 °C (permanent
use temperature of 230 °C); laboratories, quality assurance,
service, food, and much more.
Scope of delivery
– Dust-proof and waterproof handheld measuring device
(with or without sensor) in accordance with 65/67
– Calibration log
– 2x AA battery
– Operating manual
Technical data
Measurement range : – 70.0 ... +250.0 °C (– 94.0 ... +482.0 °F)
with fixed Pt1000 sensor; – 200.0 … +450.0 °C (– 328.0 ... +842.0 F) with BNC sensor (observe permissible range of the sensor!)
Accuracy
(at nominal temperature = 25 °C)
G 1700 : – 20 ... +100 °C: ±0.1 K ±1 Digit
(device with otherwise 0.1 % of measured value
BNC connection) ±2 digits, plus sensor inaccuracy
G 1710 / 20 / 30 : – 20 ... +100 °C: ±0.1 K ±1 digit
(device with – 70 ... +250 °C: ±0.2 % of measured
fixed sensor) value ±2 digits
Operating conditions : – 20 ... +50 °C;
(Device) 0 ... 95 % relative humidity
(non-condensing), temporarily usable
up to 100 % relative humidity
Display / Backlighting : 3-line unit, with background light,
protected by an unbreakable pane,
overhead display at the push of a button
Power supply : 2 x AA battery, approx. 5000 h
operating
time
Protection rating : IP65 / IP67 (with devices with
BNC connection only with sensors
with waterproof connection)
Housing : Break-proof ABS housing
Dimensions : 108 x 54 x 28 mm (H x W x T) without sensor connection
Weight : 130 g (without sensor)

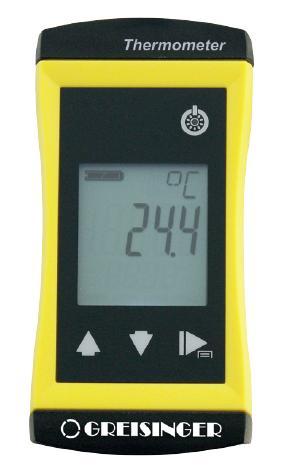

Connection G 1700 : BNC socket: for interchangeable
sensors, see accessories / interchangeable
sensors

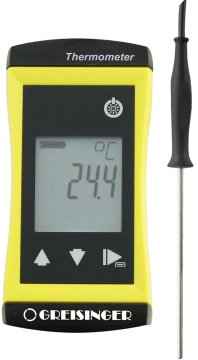

G 1710 : Immersion sensor Ø 3 mm, Pt1000
permanent 2-wire connection,
V4A, 1 m cable
G 1720 : Durable insertion sensor
Ø 3 mm, Pt1000 2-wire
fixed connection, V4A, cable 1 m
G 1730 : Extra-thin insertion sensor
Ø 1.5 mm, Pt1000 2-wire fixed
connection, V4A, 1 m cable
Sensor reaction time : Ø 3 mm: Water 0.4 m/s < 2 s;
(T90) Ø 1.5 mm: Water 0.4 m/s < 1 s
