DOL1 Optik Çözünmüş Oksjen Ölçer

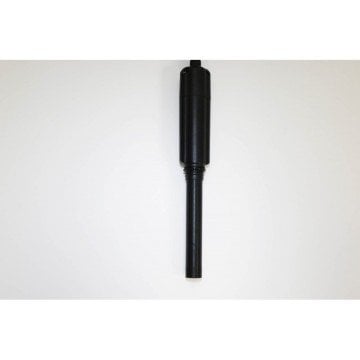

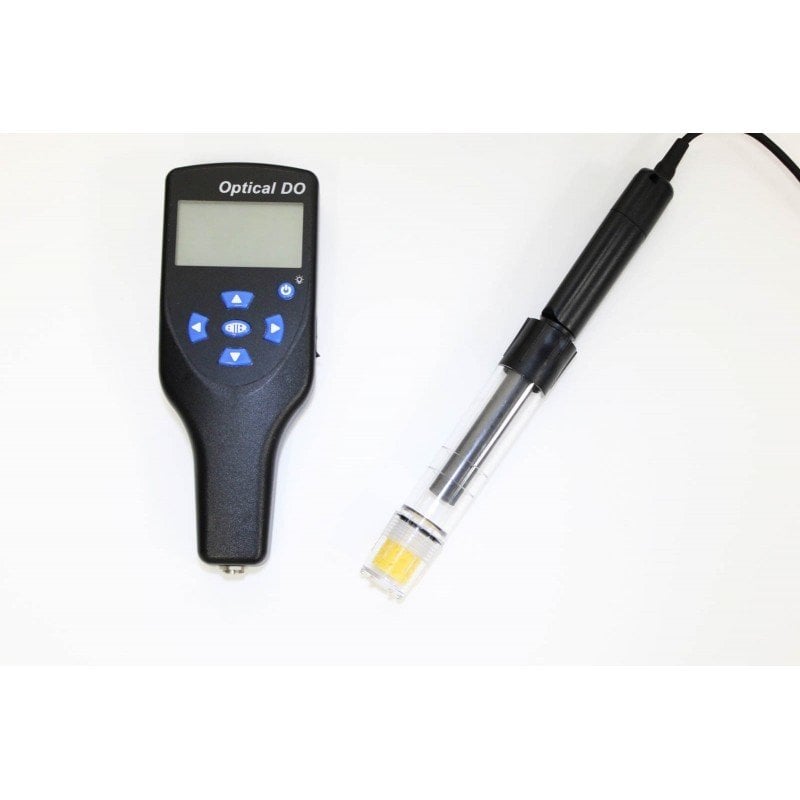

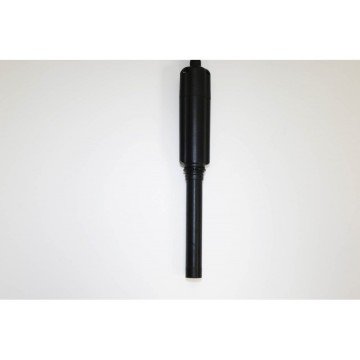

Optik Çözünmüş Oksijen Metre ve prob
New Optical Dissolved Oxygen Test System offers the latest in dissolved oxygen measurement technology as a complete test capability at an affordable price. This technology is based on the proven method whereas oxygen concentration is determined by the luminescent quenching of a dye embedded on the sensor surface. Unlike polarographic or galvanic sensors, this optical sensor does not require filling solutions, nor a “warm-up” period before use.
A Summary of the Method is:
The sensor has a “lumiphore” or dye material on its surface.
An LED directs blue light to the sensor surface.
The blue light causes a reaction on the lumiphore material. A red light is emitted as the material reacts.
The time for the red light emission is measured by the optical sensor.
A red LED is used as a reference for comparison.
The more oxygen present in the sample causes a decrease in the red light emission time. This red light emission time is measured by the optical sensor and correlated to the oxygen concentration.
Proprietary ASI algorithms increases accuracy versus common linear algorithms
Features:
Affordable, complete system
Maintenance-free
No electrolyte solution to replenish
No anode or cathode to clean or replace
No calibration or replacement sensor cap for at least 1 year in most applications
No measurement drift
Sample flow not necessary for measurement accuracy

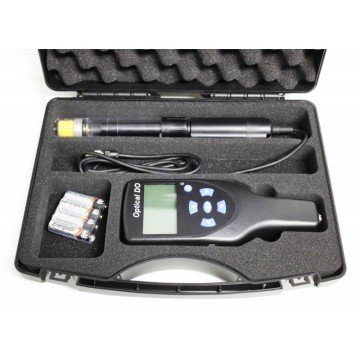

Full-featured and ready-to-use
Model…………………. DOL1
Range………………….: 0-20 ppm DO (0-200% saturation)
Accuracy……............. ±0.1 mg/L (in the 0-20 mg/L range)
Response Time……...<60 seconds in most applications
