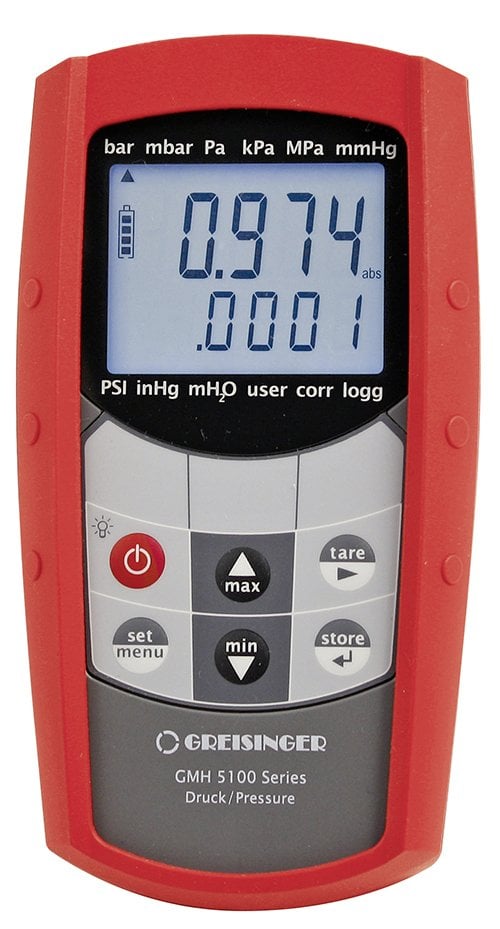

GMH 5150 Tek sensörlü Analog çıkışlı Datalogger Basınç ölçer

Water-proof pressure handheld device with 1 sensor connection, analog output and data logger

HIGHLIGHTS:

• Up to 1000 measurings per second
• Large double display with background illumination
• Sensors calibrated and fully exchangeable
• including calibration protocol
• connection for GMSD sensors
• waterproof, with data logger

GENERAL:

This handheld instrument is a valuable tool for demanding pressure measurements. Extremely robust plug connections, the silicone protection cover, backlight and a water-proof design allow its usage in harsh industrial and field environments.

APPLICATION:

• Industry and craft, HVAC: heating, ventilation, air-conditioning
• Leakage test / pressure test
• Chimney draft measurement: under pressure, leakage test at buildings (ie 4 Pascal test)
• Measurements of gas and oil firings
• Automobile trade, hydraulic analysis (peak pressure)

SPECIFICATIONS:

Sensor connections:  1
Suitable probes:
GMSD / MSD sensors, available ranges (resolutions) from -1.999 ... 2.500 mbar (0.001 mbar) to 0 ... 1000 bar (1 bar)
Display range max .:
-19999 ... +19999 digit
Display unit:
depends on measuring range selection and sensor: mbar, bar, Pa, kPa, MPa, mmHg, inHg, PSI, mH ₂ O, user
Measuring frequency:
4 measurements / s or 1000 measurements / s with peak value memory
Average filter:
adjustable: 1 ... 120 s
Accuracy:
± 0.1% FS ± 1 digit
Scope of supply:
Device, battery, calibration protocol, manual
