GTF 102 Pt100 Pt1000 sensör Greisinger

HIGHLIGHTS:

• Pt100, Pt1000, NiCr-Ni (type K)
• complete with thread and cable (loose ends)
• very robust

GENERAL:

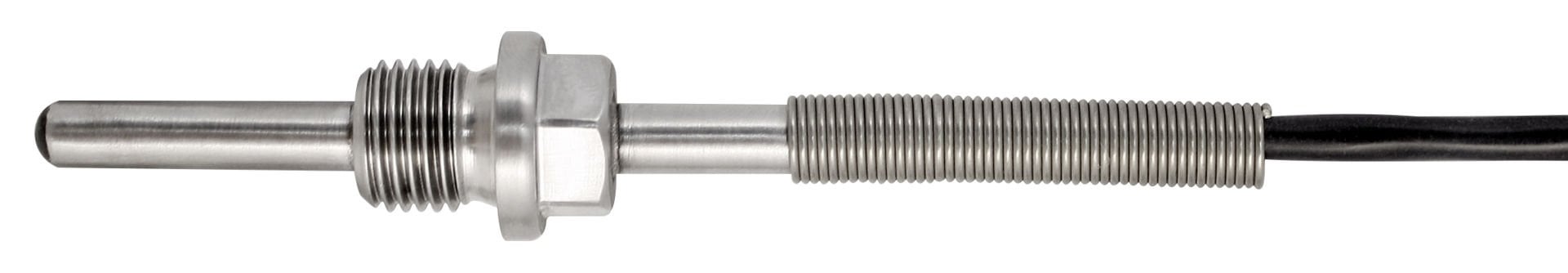

The GTF 102 is a temperature probe that can be fully tailored according to customers' requirements. The robust GTF 102 is especially suited for applications at high permanent temperatures and pressures in air, gases or liquids. The temperature is measured with either thermocouple (NiCr-Ni) or resistance temperature sensors (Pt100 / Pt1000). The probe is provided by default with tread, cable sleeve and 1 m silicone cable (compensation line with loose ends).

SPECIFICATIONS:

Sensor element:
Pt100 (2- / 3- or 4- wire), Pt1000 (2- / 3- or 4- wire) NiCr-Ni
Accuracy (standard):
Pt100 / Pt1000: DIN class B, NiCr-Ni: class 1
Tube material:
V4A (1.4404)
Thread material:
stainless steel
Connection cable:
standard: silicone compensation line, loose ends,
length: 1 m (up to max. 200)
incl. stainless steel kink guard
