Hassas Masa üstü İletkenlik Ölçüm Seti EC820

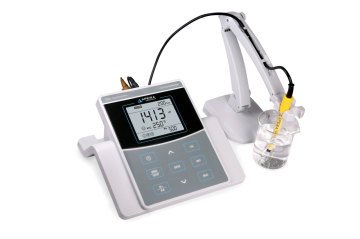

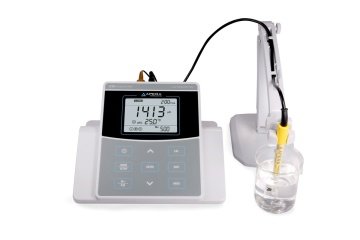

The Apera
Instruments EC820 Precision Benchtop Conductivity Meter provides
reliable conductivity measurements with various intelligent functions and a
durable structure. Equipped with Apera's high-precision BPB (Brush-Resistant
Platinum Black) glass conductivity electrode (2401T-F), the meter
measures Conductivity (EC)/TDS/Salinity/Resistivity/Temperature in
a stable and accurate manner in wide ranges (0 to 2000 mS); Accuracy: ±0.5%
F.S.
- High Precision: ±0.5% of Full Scale
- The BPB Glass Conductivity Electrode ensure Quick & Accurate EC measurements in wide ranges (0 to 2000 mS/cm)
- Easy swith among conductivity/TDS/Salinity/Resistivity
- Auto-rang swith. Auto non-linear Temp. Compensation for pure water and ultra-pure that is less than 10 μS/cm, which significantly improves the accuracy of ultra-pure water´s conductivity testing

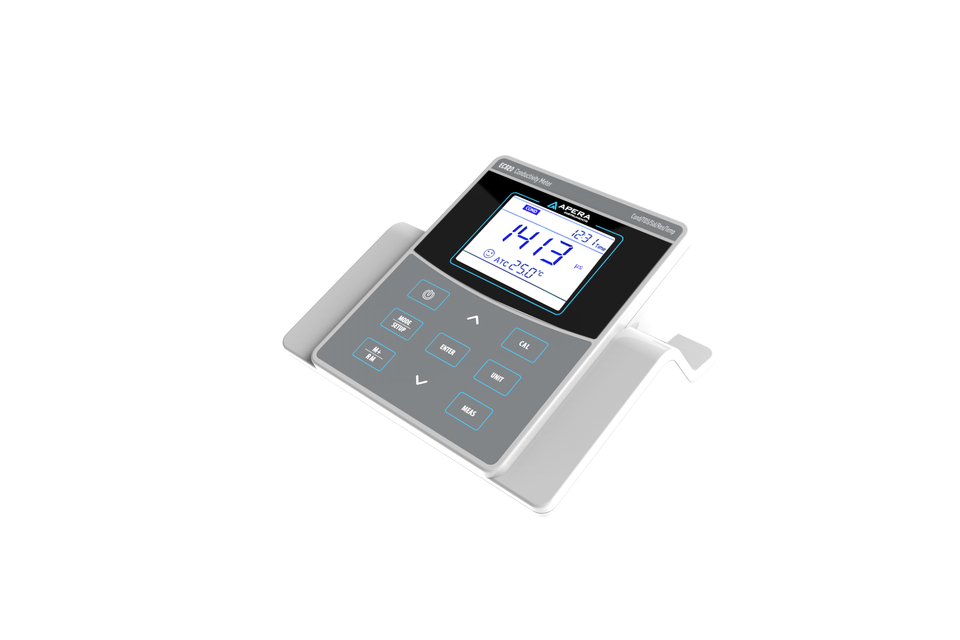

- The large backlit LCD displays EC and temperature simultaneously along with icons of stable readings and finished calibrations.
- Quick and Easy 1 to 4 points auto calibration with calibration guide and reminder function (premixed standard solutions included)
- GLP Data management (500 groups of data storage)
- USB data output and software support
Intelligent Functions:
Quick & Easy 1 to 4 Points Auto Calibration. The Smart Self-Diagnosis helps you conduct proper calibrations and monitor the condition of your probes with electrode's slope data display. The large clear LCD displays EC/TDS/Salinity/Resistivity and temperature simultaneously along with icons of stable readings and finished calibrations.
GLP Data management (500 groups of data storage), USB data output and PC software support. Timing measurement/data logging mode and Smart calibration reminder function available.
Reliable Structure:
IP54
Waterproof and Dustproof, ideal for use in harsh environments. It comes with a
complete test kit including a EC820 Precision Benchtop Conductivity Meter, a
Conductivity Electrode/Sensor, a flexible electrode arm and holder, a USB
cable, a PC-Link Software disk (windows-based system only), a power adaptor,
and 3 bottles of calibration solutions. The product is CE certified and comes
with a Three-Year Warranty for the meter, and a 6-Month warranty for the
electrode.
Delivery
- EC820 Conductivity-Meter

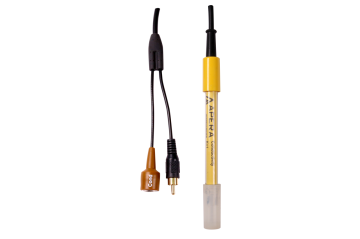

- 2401T-F Conductivity Electrode
- 602 Electrode holder
- Calibration solution (84 μS/cm; 1413 μS/cm; 12.88 mS/cm) each 50ml
- Manual
- USB Cable
- PC-Link-Software
- Power adapter
|
Specifications |
|
|
Conductivity Measuring Range |
Total: 0 to 2000 mS/cm
TDS: 0 to 100 g/l Salinity: 0 to 100 ppt Resistivity: 0 to 100 MΩ*cm |
|
Conductivity Resolution |
0.01 μS/cm;
0.1 μS/cm; 1 μS/cm; |
|
Conductivity Accuracy |
±0.5 % F.S. ±1 digit |
|
Calibration |
Automatic 1- to 4-Point-Calibration |
|
Electrode Connection |
BNC |
|
Temperature Compensation |
0 to 50 °C (automatic or manual) |
|
Electrode Constant |
0.01/0.1/1/10 cm-1 |
|
Temperature Measuring Range |
-10 to 110 °C |
|
Temperature Resolution |
0.1 °C |
|
Temperature Accuracy |
±0.4 °C ±1 digit |
|
Connection |
Cinch |
|
Data Storage |
500 Groups |
|
Data Content |
Numbering, Date, Time, Measurements, Unit, Temperature |
|
Data Output |
USB |
|
Power Supply |
DC 9 V/300 mA |
|
IP Rating |
IP54 (waterproof and dustproof) |
|
Dimensions |
203.2 × 241.3 × 101.6 mm (with case 270 × 250 × 180 mm) |
|
Weight |
1 kg (with case 3.2 kg) |
