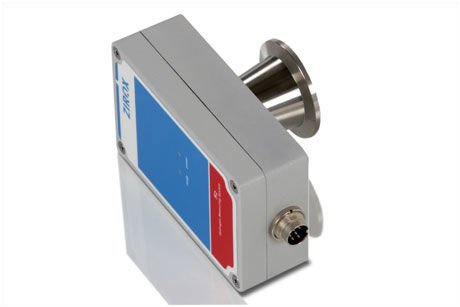

The hydrogen sensor TCS (thermal conductivity sensor) is a compact measuring device, which is directly mounted on the measuring chamber by vacuum components.

The sensor is pre-thermostatted by its own electronics, whereby a very high stable sensor signal is ensured.

Originally developed for nitriding equipment of contract heat treatment workshops, the sensor is applicable for special measuring problems (e.g. low pressure application) due to a sophisticated calibration method.

Applications

In many technological processes, hydrogen plays a big role in achieving the desired product properties. By means of TCS, the hydrogen concentration can be monitored and/or provided to the process control via standard interfaces.

Due to the increasing adoption of quality management systems (e.g. ISO 9000), a constant monitoring and documentation of quality parameters becomes more important.

With the TCS, the user can monitor hydrogenous atmospheres efficiently and continuously.

Technical Data H2-Measuring Device TCS


Range	0...100 Vol.-%
Accuracy	rel. error < 5 %
Response time	t90 (sensor) approx. 180 s (depends on gas distribution at measuring chamber)
Sensor temperature	50 °C (pre-thermostatted, electronically controlled)
Dimensions (WxHxD)	80 mm x 125 mm x 83 mm
Signal output	analog output 0/4-20 mA (scaling by software) and serial interface RS232 (0-5/10 V on request)
Power supply	24 V DC +/- 20 %, approx. 20 W
Display	none, operation via software
Protection degree	IP 65
Ambient temperature	10...50 °C, rel. humidity 0...95 % at 20 °C
Storage temperature	-20...60 °C, rel. humidity 0...95 % at 20 °C
Gas connection	via DIN40KF (others on request)
Gas supply	via diffusion (Gas distribution at measuring chamber)
Ambient pressure	950...1100 hPa (Low pressure applications need special calibration) Note: Measuring value depends on pressure
Warm-up	10 min.
Calibration	first calibration (characteristic line determination) by manufacturer, a 2-point-calibration approx. every 3 month (process pressure must be known and provided to manufacturer) by user
Mounting	no requirements
Cross-sensitivity	Gases with high thermal conductivity falsify the measuring result
