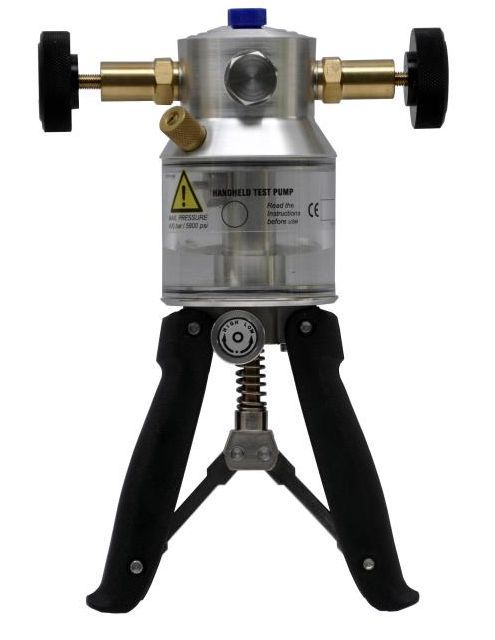

Hidrolik El Pompası HHP Serisi
Hidrolik El Pompası HHP Serisi 70 / 100 BAR
OPTIONAL (ADD-ON) ITEMS
Ideal tool for checking & Calibration of Digital / Analog Pressure Gauges / Indicators, Pressure Transmitters / Transducers & Hydrostatic Pressure Testing etc.
Generates High Pressure thro’ convenient Scissor action / minimum effort Fine Adjustment Vernier & Open / Close Release Valve facilitates
small Incremental Pressure adjustments
Özellikler
Compact & Hand Operated
Suitable for High Pressure Applications
Fine Adjustment Vernier with Open / Close Release Valve for small incremental Pressure readings
Aluminium Body
SPECIFICATIONS
Ranges Up to 70 / 100 bar
Gauge / Indicator Connection Port
1/4” (F) BSP
Test Connection Port
1/4" (F) BSP
Medium Oil / (Water : Optional)
Oil Reservoir Material
Transparent Acrylic
Reservoir Capacity 100 cc
Instrument Dimension
240 x 185 x 95 mm (H x W x D)
Instrument Weight (approx.) 1.26 Kg.
STANDARD INCLUSIONS
• Basic Pump
• Hydraulic Oil : 100 cc
• Set of Seals
• Conformance Certificate
• Hydraulic Hose with end fittings (Length : 1 Meter)
• Instruction Manual
OPTIONAL (ADD-ON) ITEMS
• Carrying Case (Soft/Hard)
• Analog / Digital Pressure Gauges
• Quick Connector
• Spare Seals Kit
• Water operated Hand Pump
• Set of Adaptors
⅛” BSP(F) X ¼” BSP (M)
½” BSP(F) X ¼” BSP (M) BSP
⅜” BSP(F) X ¼” BSP (M)
⅛” NPT(F) X ¼” BSP (M)
¼” NPT(F) X ¼” BSP (M) NPT
½” NPT(F) X ¼” BSP (M)
⅜” NPT(F) X ¼” BSP (M)
