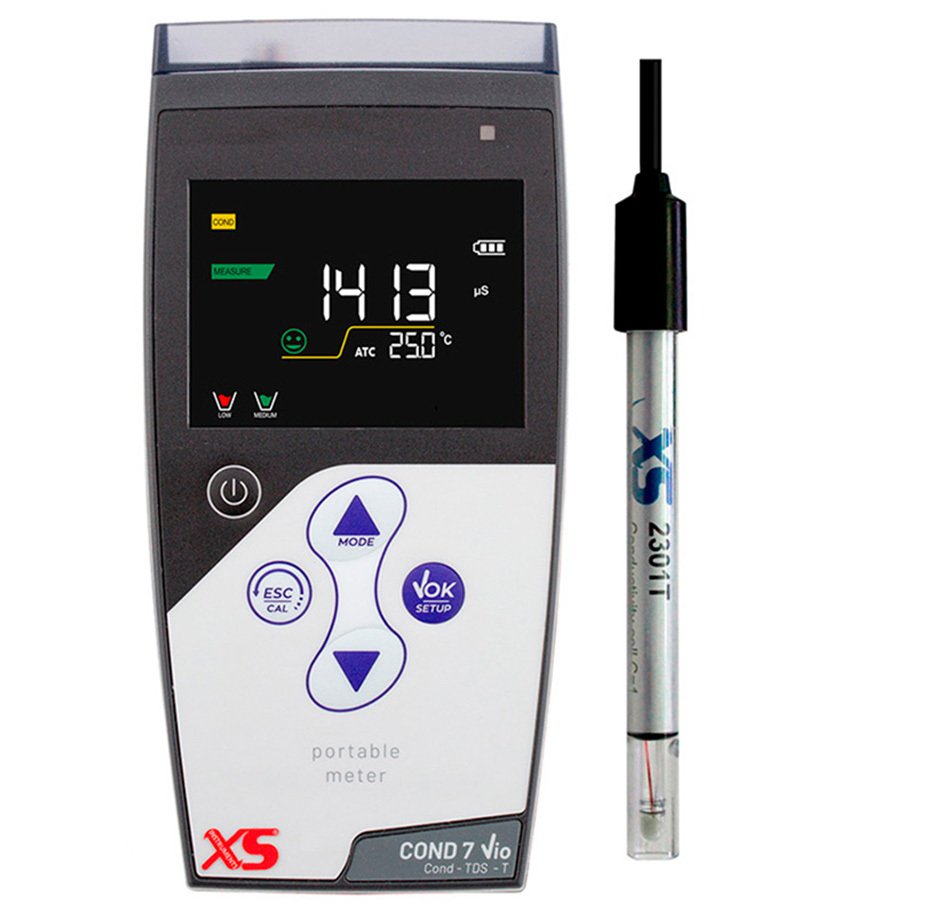

İletkenlik Ölçer taşınır 2301T hücre sensörü ile COND7 XS
İletkenlik Ölçer COND7 XS taşınır 2301T hücre sensörü ile
Professional portable conductivity meter with innovative high resolution color display, for excellent data visualization in all lighting conditions, also thanks to the possibility of automatically and manually adjusting the contrast and illumination of the display.
Conductivity measurement, TDS, with temperature display and possibility to select the parameters you want to view.
The online guide in setup and calibration allows a simple and immediate use of the device.
Automatic calibration of conductivity up to 5 points (84; 147; 1413 µS and 12.88; 111 mS) and 1 point defined by the user.
Adjustable reference temperature and selectable cell constant.
Indication with icons of the calibrated points.
Measurement stability indicator and possibility to select 3 stability levels.
All operations are constantly monitored and signaled to the operator via the colored LED above the display and the self-diagnosis messages.
Measuring range:
Cond: 0.1 µS ... 200 mS (0.01 µS - automatic)
TDS: 0.01 mg / l ... 200 g / l
Temperature: 0 ... 100.0 (0.1 ° C)
Supplied as standard:
Conductivity standards, instructions for use and carrying case.
Complete with cell 2301T with built-in temperature sensor, 1 m fixed cable.
Regulations
Regulations
CE
Performance
Accuracy (Cond)
± 2 % f.s.
Accuracy (Temperature)
± 0,5 °C
Cond measuring range (max.)
200 mS
Cond measuring range (min.)
0,00 µS
Cond resolution
0,01 / 0,1 / 1 µS/cm (automatic scale)
Reference temperature (max.)
+ 30 °C
Reference temperature (min.)
+ 15 °C
TDS Factor (max)
1.00
TDS Factor (min)
0.40
TDS measuring range (max.)
200 g/l
TDS measuring range (min.)
0.1 mg/l
Temperature coefficent (max)
10,00 % / °C
Temperature coefficent (min)
0,00 % / °C
Temperature compensation
0,0...80,0 °C
Temperature measuring range (max.)
+ 100,0 °C
Temperature measuring range (min.)
0,0 °C
Temperature resolution
0,1 °C
Working temperature (max.)
+ 45 °C
Working temperature (min.)
0 °C
Feature
Calibration report
Yes
Display
Backlight coloured high definition LCD
Inputs
BNC - RCA
IP protection
IP 57
Points of calibration Cond
1...4
Stability filter
3 levels
Standard approved Cond
84 µS - 147 µS - 1413 µS - 2,88 mS - 111,8 mS - 1 user value
Supply
Power supply
3 batteries AA 1,5 V
Dimension and Weight
Dimension (instrument)
185 x 85 x 45 mm
Instrument weight
400 g
