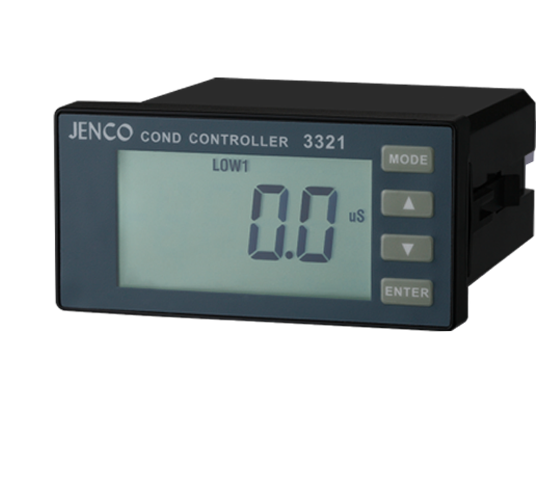

Hat üzerine bağlı İletkenlik, direnç, sıcaklık kontrol cihazı. 1/8 DIN, RoHS uyumlu, programlanabilir 2 set on/off röleli ve arka ışıklı. Mükemmel fiyat avantajına sahip.
- Kurulumu kolay 1/8 DIN plastik gövde.
- Clear LCD displays conductivity, resistivity or temperature with backlight.
- Universal power supply input from 100 ~ 240 VAC.
- Automatic or manual temperature compensation.
- Two sets of programmable on/off relays for conductivity or resistivity.
- RoHS, CE compliant.
Spesifikasyonlar
İletkenlik / Direnç Aralığı K=0.01-1 cm Aralık 1
0.000 .. 1.999 uS/cm / 0.00 .. 19.99 MΩ
İletkenlik / Direnç Çözünürlüğü K=0.01-1 cm Aralık 1
0.001 uS/cm / 0.01 MΩ
İletkenlik / Direnç Doğruluğu K=0.01-1 cm Aralık 1
±%0.5 Tam Skala ±1 hane
Conductivity / Resistivity Range K=0.01-1 cm Range 2
0.00 to 19.99 uS/cm / 0.000 to 1.999 MΩ
Conductivity / Resistivity Resolution K=0.01-1 cm Range 2
0.01 uS/cm / 0.001 MΩ
Conductivity / Resistivity Accuracy K=0.01-1 cm Range 2
±0.5% F.S. ±1 digit
Conductivity Range K=0.1-1 cm Range 1
0.00 to 19.99 uS/cm
Conductivity Resolution K=0.1-1cm Range 1
0.01 uS/cm
Conductivity Accuracy K=0.1-1 cm Range 1
±0.5% F.S. ±1 digit
Conductivity Range K=0.1-1 cm Range 2
0.0 to 199.9 uS/cm
Conductivity Resolution K=0.1-1cm Range 2
0.1 uS/cm
Conductivity Accuracy K=0.1-1 cm Range 2
±0.5% F.S. ±1 digit
Conductivity Range K=1.0-1 cm Range 1
0.0 to 199.9 uS/cm
Conductivity Resolution K=1.0-1cm Range 1
0.1 uS/cm
Conductivity Accuracy K=1.0-1 cm Range 1
±0.5% F.S. ±1 digit
Conductivity Range K=1.0-1 cm Range 2
0 to 1999 uS/cm
Conductivity Resolution K=1.0-1cm Range 2
1 uS/cm
Conductivity Accuracy K=1.0-1 cm Range 2
±0.5% F.S. ±1 digit
Conductivity Range K=1.0-1 cm Range 3
0.00 to 19.99 mS/cm
Conductivity Resolution K=1.0-1cm Range 3
0.01 mS/cm
Conductivity Accuracy K=1.0-1 cm Range 3
±0.5% F.S. ±1 digit
Temperature Range -10.0 to 120.0 °C
Temperature Resolution 0.1 °C
Temperature Accuracy ±0.3 °C
Temperature Compensation
Manual/Auto -10.0 ~ 120.0 °C (Thermistor,10K ohm at 25.0 °C)
Cell Constant 0.01, 0.1, 1.0-1 cm,2 wire
Reference Temperature 25.0 °C, factory set
Temperature Coefficient 2.00 or 0.00 %, user selectable
Control Type/Relay Output
2 ON/OFF controls / 5 A at 115 VAC or 2.5 A at 220 VAC, resistive load only
Display
LCD with backlighting
Power 100 to 240 VAC at 50/60 Hz
Ambient Temperature Range
From 0 to 50 °C
Case
1/8 DIN case, 90mm depth
