Laboratuar Masa üstü İletkenlik Ölçer EC800

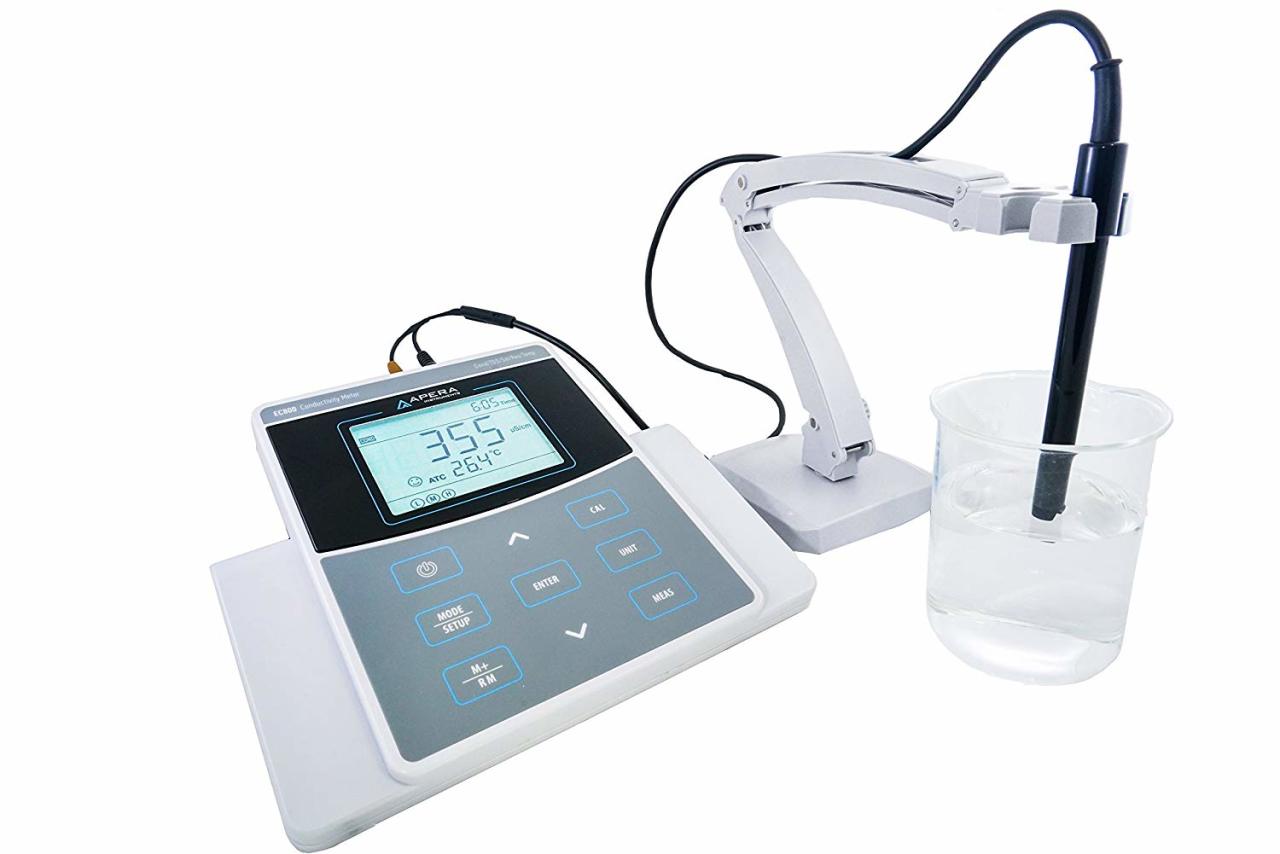

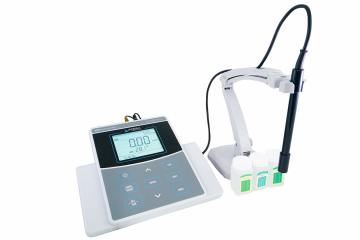

The Apera Instruments EC800 Benchtop Conductivity Meter provides reliable conductivity measurements with various intelligent functions and a durable structure. Equipped with Apera's quality BPB (Brush-Resistant Platinum Black) 2301T-F Conductivity Electrode, the meter measures Conductivity (EC)/TDS/Salinity/Resistivity/Temperature in a stable and accurate manner in wide ranges (0 to 200 mS); Accuracy: ±1% of a full scale.
- The quality BPB Conductivity Electrode ensure Quick & Accurate EC measurements in wide ranges (0 to 200 mS/cm)

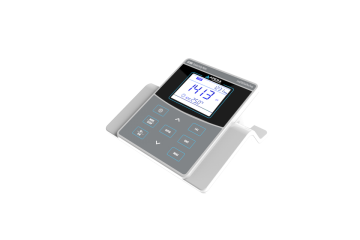

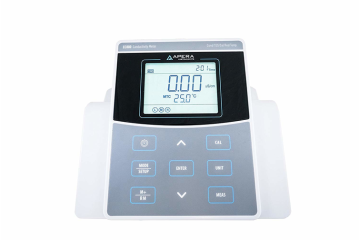

- The large backlit LCD displays conductivity/TDS/salinity/resistivity and temperature simultaneously along with icons of stable readings and finished calibrations.
- Quick and Easy 1 to 4 points auto calibration with calibration guide and reminder function (premixed standard solutions included)
- GLP Data management (500 groups of data storage)
- USB data output and software support
Intelligent Functions:
Quick & Easy 1 to 4 Points Auto Calibration. The Smart Self-Diagnosis helps you conduct proper calibrations and measurements. The large clear LCD displays EC/TDS/Salinity/Resistivity and temperature simultaneously along with icons of stable readings and finished calibrations.
GLP Data management (500 groups of data storage), USB data output and PC software support. Timing measurement/data logging mode and Smart calibration reminder function available.
|
Specifications |
|
|
Conductivity Measuring Range |
Total: 0 to 200 mS/cm TDS: 0 to 100 g/l Salinity: 0 to 100 ppt Resistivity: 0 to 100 MΩ*cm |
|
Conductivity Resolution |
0.01 μS/cm; 0.1 μS/cm; 1 μS/cm; |
|
Conductivity Accuracy |
±1 % F.S. ± 1 digit |
|
Temperature Compensation |
0 to 50 °C (automatic or manual) |
|
Cell Constant |
0.1/1/10 cm-1 |
|
Electrode Connection |
BNC |
|
Temperature Measuring Range |
0 to 100 °C |
|
Temperature Resolution |
0.1 °C |
|
Temperatur Accuracy |
±0.5 °C ±1 digit |
|
Connection |
Cinch |
|
Data Storage |
500 Groups |
|
Data Content |
Numbering, Date, Time, Measurements, Unit, Temperature |
|
Data Output |
USB – PC-Link-Software |
|
Power Supply |
DC 9 V/300 mA |
|
IP Rating |
IP54 (waterproof and dustproof) |
|
Dimensions |
240 × 235 × 103 mm (with case 270 × 250 × 180 mm) |
|
Weight |
1 kg (with case 3.2 kg) |
Delivery
- EC800 Conductivity-Meter

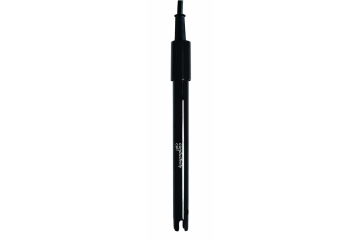

- 2301T-F Conductivity Electrode
- 602 Electrode Holder
- Calibration Solution (84 μS/cm; 1413 μS/cm; 12.88 mS/cm) each 50ml
- Manual
- USB Cable
- PC-Link-Software
- Power adapter
