Masa tipi İletkenlik Ölçüm Aygıtı XS Cond 50 VioLab
Masa tipi İletkenlik Ölçüm Aygıtı XS Cond 50 VioLab
2301 T Hücre

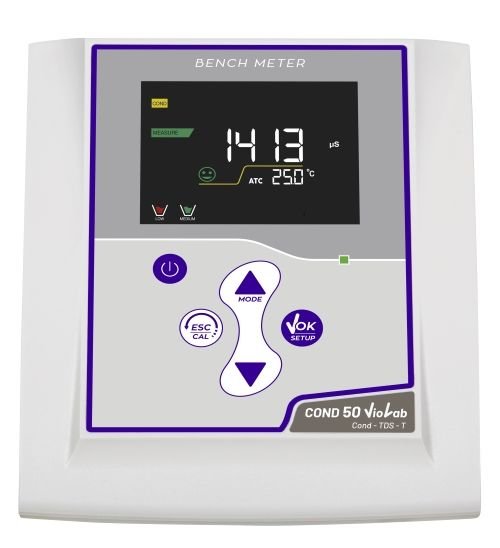

Professional bench conductivity meter with innovative high definition color LCD display, with possibility of brightness adjustment.
Conductivity measurement, TDS, with temperature display.
Possibility to select the parameters you want to see on the display.
The online guide in setup and calibration allows a simple and immediate use of the device.
Automatic calibration of conductivity up to 5 points (84; 147; 1413 microS and 12.88; 111 mS) and a user-defined point.
Automatic scale change, selectable reference temperature (15… 30 ° C) and selectable cell constant (C = 0.1; 1; 10).
Adjustable reference temperature and selectable cell constant.
Indication with icons of the calibrated values.
Measurement stability indicator and possibility to select 3 stability levels.
All operations are constantly monitored and reported to the operator via the colored LED above the display and self-diagnosis messages.
Measuring range:
Cond: 0.0 microS ... 199.9 mS (0.01 microS - automatic)
TDS: 0.01 mg / l ... 200 g / l
Temperature: 0 ... + 100.0 (0.1 ° C)
Supplied as standard:
Electrode holder stand, conductivity standard, power supply and instructions for use.
Complete with cell 2301T with built-in temperature sensor, 1m fixed cable.
| Technical specifications | |
|---|---|
| Accuracy (Temperature) | ±0,5 |
| Temperature coefficent (max) | 0,00 ... 10,00 |
| Temperature compensation | 0,0 ... 100,0 |
| Cell constant | 0.1 / 1 / 10 selectable |
| Dimension | |
| TDS factor | 0,40 ... 1,00 |
| Stability filter | 3 levels |
| Warranty | |
| Inputs | BNC - RCA |
| Weight | 0.38 |
| Cond resolution | 0,01 - 0,1 - 1 µS / 0,01 - 0,1 mS |
| Temperature resolution | 0,1 |
| Power supply | 100 - 240 |
| IP rating | 54 |
| Online help | Yes |
| Swabs recognised Cond | 84 µS - 147 µS - 12,88 µS - 111,8 µS - 1 valore user |
| Working temperature | 0 ... +45 |
| Reference temperature | +15 ... +30 |
| Accuracy (Cond) | ±2 % f.s. |
| Display | High-definition, backlit colour LCD |
| Buffer used indication | Yes with icon |
| Calibration points Cond | 1 ... 4 |
| Cond measuring range | 0,00 μS ... 200 mS |
| TDS measuring range | 0.1 mg/l ... 200 g/l |
| temperature measurement range | 0,0 ... +100,0 |
| Calibration Report | Yes |
