MPM483 Basınç Transmiteri

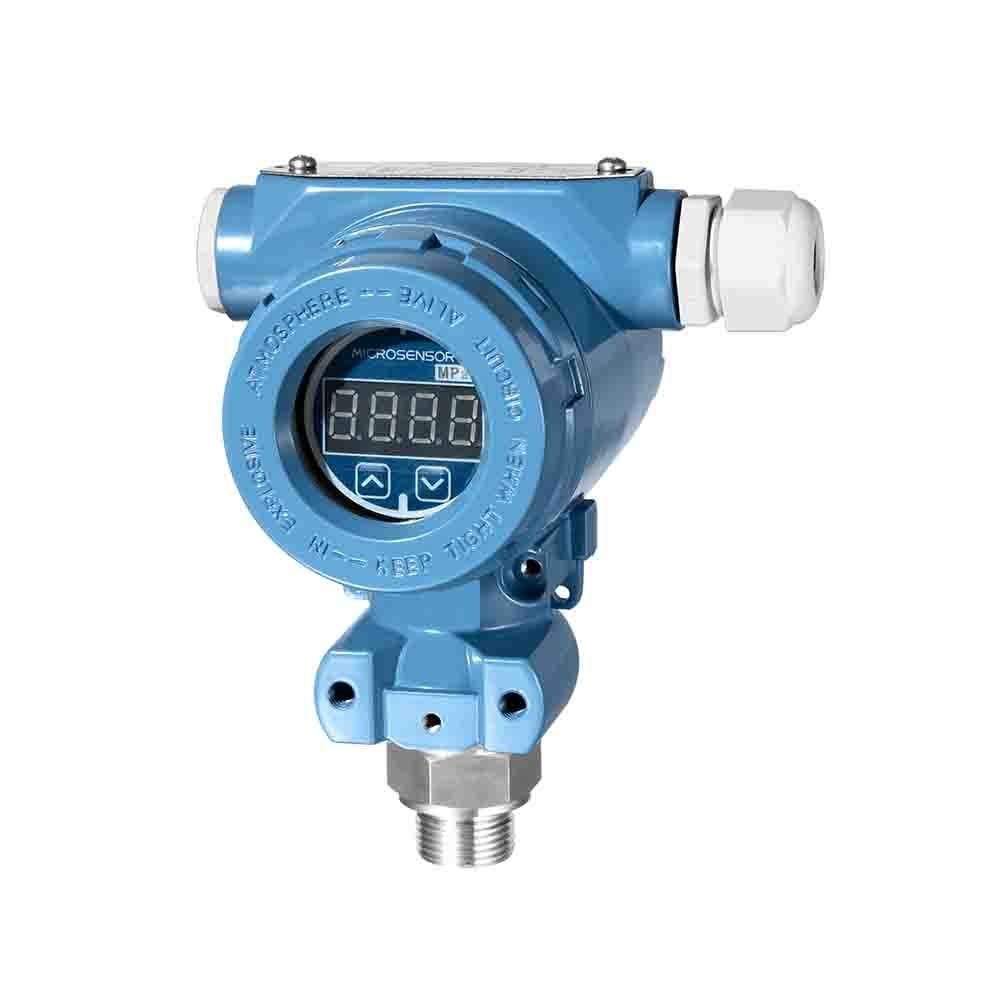

MPM483 Pressure Transmitter
Features
·Aluminum-alloy electronic housing; protection IP65;
·Reversed signal polarity; moment over-current, overvoltage, interference protection;
·Optional signal output;
·Zero elevation, pressure range adjustable;
·0%~100% hand pointer, LCD and LED indicator optional;
·Stainless steel material contacting with the media; flush diaphragm and tantalum diaphragm optional;
·Intrinsic Safe Explosion-proof version conforms to ExiaⅡCT6 of Standard GB3836.1 and GB3836.4; Explosion-proof Certificate is issued;
·EXD product conforms to ExdⅡCT6 Gb of standard GB3836.2; EXD Certificate is issued;
·Ship-use product conforms to CCS Rules of Classification of Sea-going Steel Ships(2006); ship-use certificate is approved.
Introduction
MPM483 pressure transmitter uses piezoresistive OEM pressure sensor as sensing element, which is accurate tested and laser trimmed to compensate zero and sensitivity in wider temperature range. The amplifier circuit transforms sensor signal into standard output signal. Through long-term aging and stability testing, the whole product’s performance is stable and reliable.
MPM483 pressure transmitter is suitable for rugged environment which needs zero elevation and range adjustment. It is widely used for process control and pressure measure of petroleum, chemi-industry, metallurgy, power station, textile industry, building material, food, medicine, hydrology and environment control, etc
Specification
Code |
0A |
02 |
03 |
07 |
08 |
09 |
10 |
12 |
13 |
14 |
15 |
17 |
18 |
19 |
20 |
|||||
Unit |
kPa |
MPa |
||||||||||||||||||
Measure range |
0-10 ~0-35 |
0-20 ~0-70 |
0-30 ~0-100 |
0-60 ~0-200 |
0-100 ~0-35 |
0-200 ~0-700 |
0-0.3 ~0-1 |
0-0.6 ~0-2 |
0-1 ~0-3.5 |
0-2 ~0-7 |
0-3 ~0-10 |
0-6 ~0-20 |
0-10 ~0-35 |
0-20 ~0-70 |
0-30 ~0-100 |
|||||
Upper limit |
35 |
70 |
100 |
200 |
350 |
700 |
1.0 |
2.0 |
3.5 |
7.0 |
10.0 |
20.0 |
35.0 |
70.0 |
100.0 |
|||||
Overpressure |
100 |
100 |
150 |
300 |
500 |
1000 |
1.5 |
3.0 |
5.0 |
10.0 |
15.0 |
30.0 |
52.0 |
100.0 |
110.0 |
|||||
|
||||||||||||||||||||
Basic error |
Min. |
Typ. |
Max. |
Unit |
||||||||||||||||
Non-linearity |
0A~03 code |
/ |
0.25 |
0.5 |
±%FS |
|||||||||||||||
07~20 code |
0.1 |
0.25 |
0.5 |
±%FS |
||||||||||||||||
Hysteresis |
0A~03 code |
/ |
0.15 |
0.25 |
±%FS |
|||||||||||||||
07~20 code |
0.05 |
0.1 |
0.15 |
±%FS |
||||||||||||||||
Repeatability |
0A~03 code |
/ |
0.25 |
0.5 |
±%FS |
|||||||||||||||
07~20 code |
/ |
0.15 |
0.25 |
±%FS |
||||||||||||||||
Temp.effect |
0A~03 code |
0.5 |
1 |
2 |
±%FS, @25℃ |
|||||||||||||||
07~20 code |
0.3 |
0.5 |
1 |
±%FS, @25℃ |
||||||||||||||||
Stability |
0.3 |
±%, one year |
||||||||||||||||||
Media temp. |
-30~80 |
℃ |
||||||||||||||||||
Operation temp. |
Normal Version:-30~80 |
℃ |
||||||||||||||||||
Intrinsic Safe Version:-10~60(only for 2-wire, 4~20mA) |
||||||||||||||||||||
EXD Version:-20~60 |
||||||||||||||||||||
LCD Digital Indicator:-20~60 |
||||||||||||||||||||
LED Digital Indicator:-30~70 |
||||||||||||||||||||
Power supply |
11~28 |
15~28 |
VDC |
|||||||||||||||||
Output signal |
4~20 |
0/1~5/10 |
mADC/VDC |
|||||||||||||||||
Transmitting |
2-wire |
3-wire |
|
|||||||||||||||||
Load |
≤(U-11)/0.02 |
>5k |
Ω |
|||||||||||||||||
Pressure port |
Stainless Steel 1Cr18Ni9Ti |
|||||||||||||||||||
Diaphragm |
Stainless Steel 316L |
|||||||||||||||||||
Sealing |
Viton O-ring or Full-welded |
|||||||||||||||||||
Electric housing |
Aluminum-alloy |
|||||||||||||||||||
Protection |
IP65 |
Note: The power supply of 2-wire transmitter with LCD or LED Digital Indicator shall be not less than 20VDC, Load≤(U-12)/0.02.
Outline Construction:(Unit:mm)
EXD Version’s Construction and Outline Dimension:
Electric Connection for 2-wire, 4~20mA Output
Electric Connection for 3-wire,0/1~5/10VDC Output
Electric Connection for Intrinsic Safe Version:
Sipariş Örneği
MPM483 |
Piezoresistive Pressure Transmitter |
||||||||||||||
Range |
-100kPa…0kPa~10kPa…100MPa |
||||||||||||||
[0~X]kPa or MPa |
X:actual measurement range |
||||||||||||||
Code |
Output Signal |
||||||||||||||
E |
4~20mADC |
||||||||||||||
F |
1~5VDC |
||||||||||||||
J |
0~5VDC |
||||||||||||||
V |
0~10VDC |
||||||||||||||
Code |
Construction Material |
||||||||||||||
Diaphragm |
Pressure Port |
Housing |
Electric Housing |
||||||||||||
22 |
SS316L |
SS |
SS. |
Aluminum-alloy |
|||||||||||
24 |
SS316L |
SS316L |
SS.316L |
Aluminum-alloy |
|||||||||||
25 |
Tantalum |
SS |
SS. |
Aluminum-alloy |
|||||||||||
35 |
Tantalum |
Hastelloy |
SS. |
Aluminum-alloy |
|||||||||||
Code |
Others |
||||||||||||||
M1 |
0~100%hand pointer indicator |
only for 4~20mA |
|||||||||||||
M3 |
3 1/2LCD digital indicato |
||||||||||||||
M6 |
4 LED digital indicator |
||||||||||||||
M7 |
4 LCD digital indicator |
||||||||||||||
PC1 |
Flush diaphragm, M20*1.5 male |
||||||||||||||
PC3 |
Flush diaphragm, G½ male |
||||||||||||||
i |
Intrinsic safe version Exia II CT6 Ga |
||||||||||||||
d |
Exd version Exd II CT6 Gb |
||||||||||||||
T |
Ship-use |
||||||||||||||
C1 |
M20*1.5 male, face type seal |
||||||||||||||
C3 |
G½ male |
||||||||||||||
C5 |
M20*1.5 male, waterline seal |
||||||||||||||
G |
Gauge |
||||||||||||||
S |
Sealed gauge |
||||||||||||||
A |
Absolute |
||||||||||||||
MPM483 [0~100]kPa E 22 C5G the whole spec. |
