Oksijen Transduseri Optik, GODOX200 PS Tuzlu Su modeli
Oksijen Transduseri Optik, GODOX200 PS Tuzlu Su modeli
Optical oxygen transducer for permanent measurements in salt water
HIGHLIGHTS:
Two 4 ... 20 mA (or 0 ... 5 V) outputs: concentration and saturation
Full pressure and temperature compensated
Calibration in many applications only 1 time per year!
No flow required
GENEL:

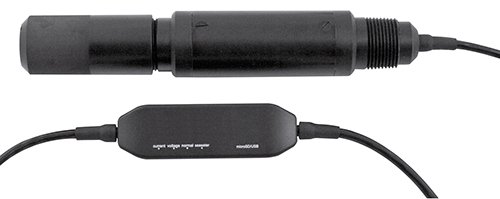

The oxygen transmitter GODOX 200 is a robust measuring system for low-maintenance continuous operation. Compared to electrochemical sensors, it does not need any electrolyte. Measurement is done with a fluorescence transit time method. Together with the complete data processing, including automatic ambient pressure and temperature compensation, it represents a carefree package for continuous measurements. Measurement at depths of up to 30 m is possible. The lifetime of the replaceable measuring diaphragm is usually 2 years.
TECHNICAL DETAILS:
Measuring ranges (both can be used simultaneously)
Oxygen concentration: 0 ... 20 mg/l (=ppm)
Oxygen saturation: 0 ... 200 % O2
Output signal: 4 ... 20 mA or 0 ... 5 V (convertible)
Accuracy: ±0.1 mg/l below 1 mg/l, ±0.2 mg/l above 1 mg/l
Response time T90: < 30 sd
Operating temperature: 0 ... 65 ºC
Supply: 5 ... 15 V DC, approx. 160 mA
Material:
Housing: PVC/ stainless steel, option -PS "seawater resistant": PVC
Diaphragm: PET
Dimensions Sensor:
Length: 225 mm
Insertion length: 70.5 mm
Diameter: 42.1 mm
Installation diameter: 28.0 mm
Process connection: 1" NPT front/ rear (others on request)
Connection:
Loose cable ends:
No Color Description
1 red Supply +
2 black Supply -
3 green Output O2 Concentration
4 white Output O2 Saturation
Kablo Boyu:
5 m, 10 m, 15 m, 30 m
Diğer ölçüler için danışınız
Scope of delivery:
transmitter (consisting of sensor body and evaluation electronics, connected by cable), storage cap
