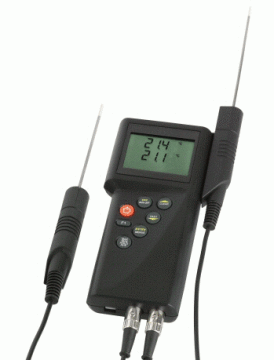

P715 Universal 2-kanallı Termometre
P715 - Universal-Thermometer, 2-Kanal
The universally applicable process-controlled hand-held instruments, Series P700, are ideal for measuring operations in which high accuracy counts or the possibility of online documentation is demanded.
Product features
- USB interface
- Optional DE-Graph Windows Software for graphic and tabular documentation
- High measuring accuracy
- Integrated calibration function for simple compensation of sensor tolerances
- Physical 1-point, 2-point or 3-point calibration function
- Measuring channels are freely assignable
- Recording maximum, minimum, hold and average values
- Integrated sensor holder for one hand operation
- Mains operation possible
- Simultaneous display of two measured values
- Differential temperature display
The all-round talent for temperature measurements thermocouple (type J, K, L, N, T) to +1370°C with a resolution of 0,1°C over the full measuring range. Ideal for quality assurancem service and production
Technical data
| Inputs | 2-channel, thermocouple: type K, J, L, N, T |
| Measuring range | |
| Thermocouple | according DIN (-200°C...+1370°C) |
| Accuracy | |
| Thermocouple K, J, L, N, T |
±0,2°C from 0°C...+200°C |
| Resolution | 0,1°C remaining range |
| Connectors | DIN 8-pole |
| Working temperature | 0°C...+40°C |
| Display | 2-line LCD |
| Housing | plastic |
| Dimensions | 200 x 93 x 44 mm (LxBxH) |
| Weight | 350 g |
| Power supply | 9 V battery |
| Batterie life | appr. 20 h |
