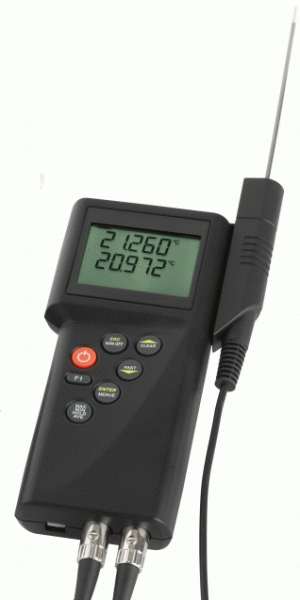

P795B Referans-Termometre Bluetooth bağlantılı

High preci­sion instru­ment for temper­ature (±0,01), with memory for 6.000 meas­ure­ments.

With bluetooth- connection for app DEGraph Blue
(App can be downloaded free of charge in the Play or App Store)


The P795-series instru­ments provide different calib­ra­tion possib­il­ities for the connect­able Pt100 probes. The easiest and most convenient way is to use our Smart probes with Eprom. The calib­ra­tion coef­fi­cients (R0ABC) will auto­mat­ic­ally transfer from the probe to the instru­ment. The user has nothing to do except for turning on the instru­ment. Calib­ra­tion coef­fi­cients of the Smart probes are calcu­lated at 0°C, 75°C and 150°C as standard. On request we can provide further calib­ra­tion points.

 Technical data

Inputs Pt100 according to EN 60751
Meas­uring range
Pt100 -200°C...+850°C
Accuracy
Pt100 ±0,015°C from -50°C...+199,99°C
±0,025% of reading for the remaing range
Resol­u­tion 0,001°C from -200°C...+200°C
remaining range 0,01°C
EX-mark -
Memory

6.000 meas­ure­ments

Meas­uring interval Adjustable: 1 second...30 minutes
Output USB
Connectors 8-pole DIN 45326
Working temper­ature 0°C...+40°C
Display 2-line LCD
Housing plastic (ABS)
Dimen­sions 200 x 85 x 40 mm (LxWxH)
Weight 300 g
Power supply 9 V battery
Batterie life appr. 20 h

Sensors

High temperature probe incl 5 adjustment points, 400 x 6mm

Pt100 Reference standard with stainless steel handle -40...+500 °C 300 x 4,0 mm

Pt100, Cl. 1/3 DIN, -30...+200°C

Pt100, Smartprobe without handle for P795 -200...+450 °C 145 x 1,5mm

Pt100, Smartprobe P795 -200...+450 °C 150 x 6,0 mm

Pt100, Smartprobe P795 -200...+450 °C 230 x 3,0 mm

Pt100, Smartprobe P795 -200...+450 °C 300 x 1,5 mm

Pt100, Smartprobe P795 -200...+450 °C 300 x 6,0 mm

Pt100, Smartprobe P795 -200...+450 °C 375 x 6,0 mm

Pt100, Smartprobe P795 -200...+450 °C 630 x 6,0 mm

Pt100, Smartprobe_P795 -200...+450 °C 150 x 3,0 mm

Pt100, Smartprobe_P795 -200...+450 °C 300 x 3,0 mm

Smart precision probe with 5 point adjustment -100...+250°C

 Smart precision probe with 5 point adjustment -100...+400°C
