pH 50 VioLab masa tipi pH metre 201T electrodlu
pH 50 VioLab masa tipi pH metre 201T electrodlu GIORGIO BORMAC

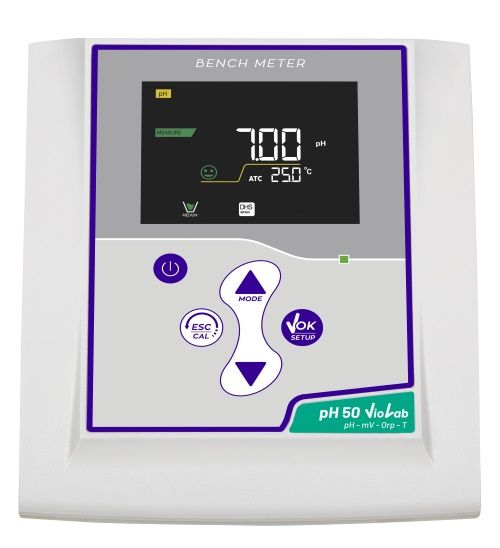

Professional bench instrument with innovative high definition color LCD display, with possibility of brightness adjustment.
pH, mV, ORP measurement, with temperature display.
Possibility to select the parameters you want to see on the display.
The online guide in setup and calibration allows a simple and immediate use of the device.
Automatic pH calibration with USA and NIST buffers up to 3 points and 2 points defined by the user.
Automatic ORP calibration on 1 point.
Indication with icons of the calibrated values.
Measurement stability indicator and possibility to select 3 stability levels.
All operations are constantly monitored and signaled to the operator via the colored LED above the display and self-diagnosis messages.
Measuring range:
pH: 0.00 ... 14.00 (0.1 - 0.01 pH)
mV: ± 1000 (1 mV)
Temperature: 0 ... 100.0 ° C (0.1 ° C)
Supplied as standard:
Electrode holder stand, colored buffer solutions, power supply and instructions for use.
Complete with XS 201T electrode, with integrated temperature sensor.
Performance
Accuracy (pH)
± 0,02
Accuracy (Temperature)
± 0,5 °C
mv measuring range (max.)
+ 1000
mv measuring range (min.)
- 1000
ORP measuring range (max.)
+ 1000
ORP measuring range (min.)
- 1000
ORP resolution
1 mV
pH measuring range (max.)
+ 14,00
pH measuring range (min.)
0
pH resolution
0,01
Temperature compensation
0,0...100,0 °C
Temperature measuring range (max.)
+ 100,0 °C
Temperature measuring range (min.)
0,0 °C
Temperature resolution
0,1 °C
Working temperature (max.)
+ 45 °C
Working temperature (min.)
0 °C
Feature
Calibration report
Yes
DHS compatible
Yes
Display
Backlight coloured high definition LCD
Inputs
BNC - RCA
IP protection
IP 54
Points of calibration ORP
1
Points of calibration pH
1...3
Stability criteria
3 levels
Standard approved pH
USA - NIST - 2 custom values
Supply
Power supply
100 - 240 V / 50 - 60 Hz
Dimension and Weight
Dimension (LxWxH)
160 x 140 x 45 mm
Weight
380 g
