pH elektrodu cam gövdeli Genel kullanım Labsen 213 Apera

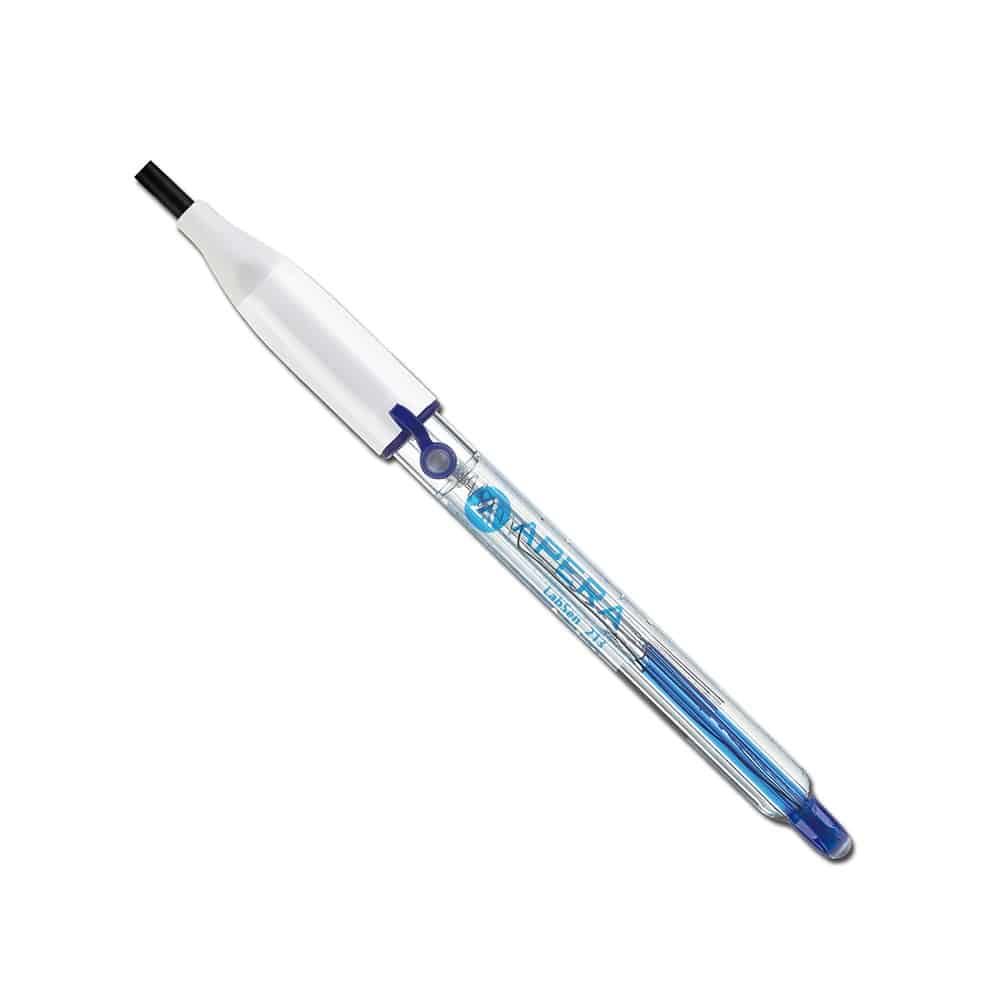

The LabSen® 213 combined pH electrode from Apera Instruments is a pH electrode with integrated temperature sensor ideal for regular, precise measurements in aqueous solutions for scientific investigations or quality control. This electrode is compatible with TRIS buffer solutions.

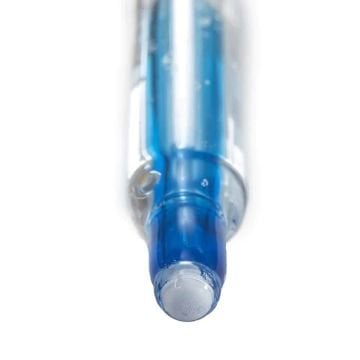

LabSen S-Type Hemispherical Glass Diaphragm – Thanks to the low-resistance and rugged glass diaphragm, the electrode delivers fully stabilized readings in 15 to 30 seconds, yet is up to 10 times more rugged than conventional products, significantly reducing the likelihood of the electrode breaking during impacts.

Long-life reference system – The LabSen 213 pH electrode uses a long-life reference system consisting of a glass tube, AgCl and a reference silver wire. The top of the thin glass tube is filled with cotton, which prevents a reaction between AgCl and electrolyte when the temperature changes. It improves the stability of the reference electrode and extends the life of the electrode.

Patented pH/temperature combination structure – The temperature element is placed in an independent cavity under the pH glass membrane. With the built-in thermally conductive medium, the temperature measurement can be 40% faster, which significantly improves the reaction time and stability of the pH electrode.

• pH measurement technology and material from Switzerland
• Patented structure for combined pH & temperature measurement
• No air bubbles thanks to gel electrolyte
• Durable reference system
• TRIS compatible

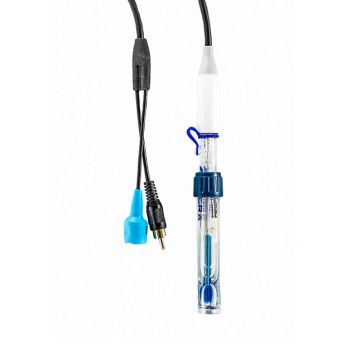

The electrode uses a BNC connector that is compatible with all pH meters that use BNC connectors, such as Apera Instruments PH850, PC850, PH8500, PC8500, PH700, PH910, PC910, PH950, PC950,PH800, PH800, PC800, PH820 and PC820. The integrated temperature sensor is connected with an RCA connector (Cinch) and is not compatible with all measuring devices of other manufacturers.

This electrode has a 6-month manufacturer’s warranty.
