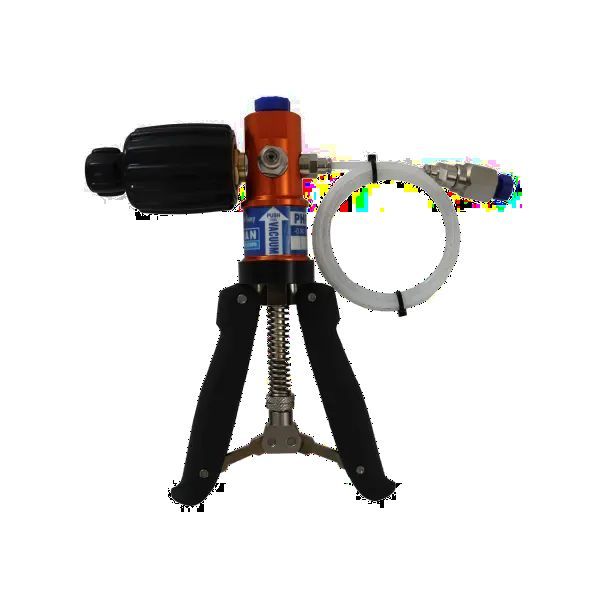

PHP 60 Basınç Kalibrasyon Pompası
PHP 60 Basınç Kalibrasyon Pompası
- Compact, Light Weight, Hand Operated
- Combined Vacuum & Pressure Pump with Pressure/Vacuum Changeover option
- Fine Adjustment Vernier to realize upto 1 mbar Resolution/Sensitivity
- Very Low Leakage rate
- Flexible Nylon Hose (1 Meter) with Swivel Adaptor to connect devices under test
- Ideal tool for checking & Calibration of Pneumatic Digital Indicators, Manometers, Pressure Transducers / Transmitters, Pneumatic Loops etc.
- Generates (Pneumatic) Pressure / Vacuum thro’ convenient Scissor action / minimum effort, Fine Adjustment Vernier.
- Range: -0.9 bar Vacuum to 60 bar Pressure
- Medium: Air
- Sensitivity / Resolution: Upto 1 mbar
- Gauge / Indicator Connection Port: 3/8” (F) BSP
- Test Connection Port: 1/4″ (F) BSP
- Instrument Dimension: 240 x 160 x 65 mm (H x W x D)
- Instrument Weight (approx.): 1 Kg
