RMS Multimetre düşük geçiş filtreli

Kategori
Marka
Stok Kodu
MM520
Garanti Süresi
12 Ay
RMS Multimetre düşük geçiş filtreli

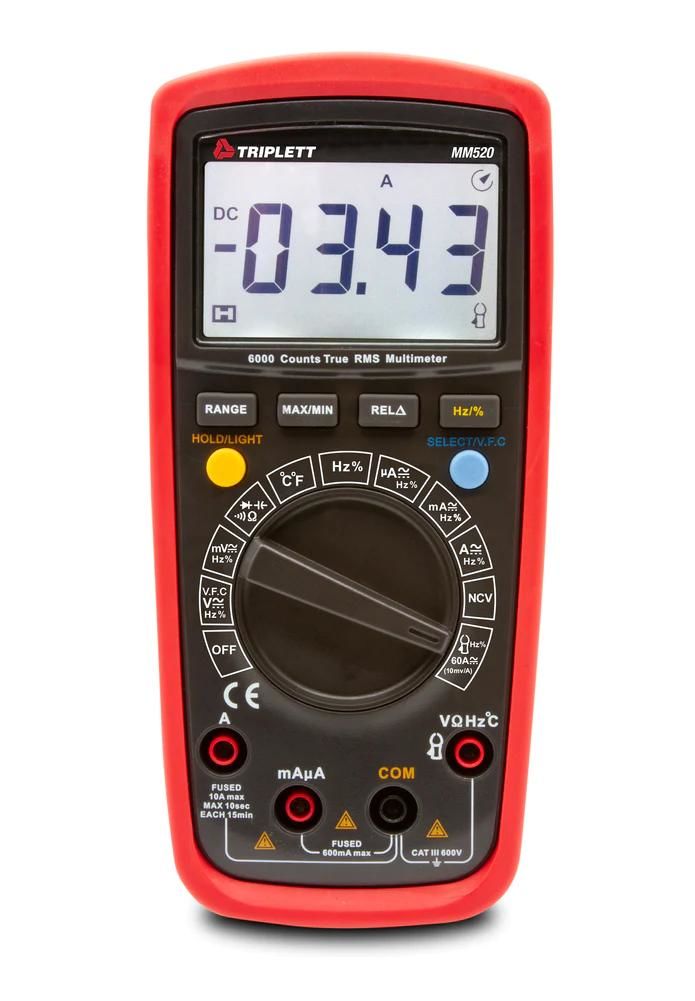

The Triplett MM520 is a 6000 count high performance digital multimeter with True RMS readings to provide better accuracy when measuring non-sinusoidal or noisy waveforms. It offers a large variety of measurement features including AC/DC Voltage, AC/DC Current, AC/DC µA Current, Resistance, Temperature, Frequency, Capacitance, Continuity, and Diode Test. Additional features include Low Pass FIlter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives, a built-in NCV Detector, data hold, relative mode, and 60A clamp adapter input can be used with virtually any clamp adapter that has a 10mV/A output. The rubberized overmolded housing provides impact and drop resistance in a sleek ergonomic design. ETL listed with CAT III 600V safety rating that provides superior resistance to damage from transient overvoltages in demanding settings. The Model MM520 is suited for a variety of industrial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes test leads, temperature probe, pouch case, and (3) AAA batteries. 1-year warranty.


  MM520 MM525
Display counts 6000 count 6000 count EBTN w/bargraph
Basic Accuracy ±0.7% ±0.7%
AC/DC Voltage 600V 600V
AC/DC Current 10A 10A
AC/DC µA Current 600µA 600µA
Resistance 60MΩ 60MΩ
Temperature -40 to 1832°F
(-40 to 1000°C)
-40 to 1832°F
(-40 to 1000°C)
Capacitance 100mF 100mF
Frequency 10MHz 10MHz
Duty Cycle 0.1 to 99.9% 0.1 to 99.9%
Continuity <10Ω <50Ω
Lo Pass Filter (LPF) Yes Yes
LoZ Yes
NCV Detector Yes Yes
Clamp Adapter Input 10mV/A (60A max)
Safety Category CAT III-600V CAT III-600V
Dimensions 6.9 x 3.2 x 1.9"
(175 x 81 x 48.5mm)
6.9 x 3.2 x 1.9"
(175 x 81 x 48.5mm)
Weight 12.3oz. (350g) 12.2oz. (345g)
