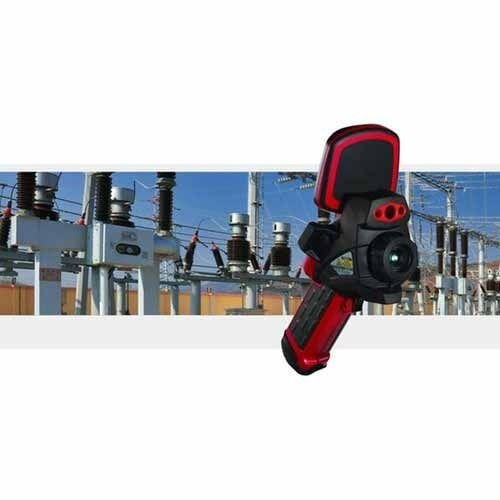

Satir Hotfind-VR Termal Kamera -20°C ...+600°C

Satir Hotfind-VR Termal Kamera -20°C ...+600°C

High frame rate in real time

HotFind series adopts NTSC (60Hz) or PAL (50Hz) composite video output. The thermal images are displayed in real time which guarantees complete and vivid thermal imaging with no ghosting.

Extendable temperature range

Objects of different temperatures require the corresponding temperature ranged infrared cameras. The HotFind series has four temperature ranges. It can be extended from the standard -20 to 250℃, upto +1500℃, which means the HotFind series can also be widely used in high temperature applications.

Measurement Features

The HotFind series has integrated Spots (up to 9), Line profile, Area Boxes (up to 5), multiple Isotherm and auto-tracking analysis, which provide accurate non-contact temperature measurement.

Various optional lenses

Flexible design of the camera means the HotFind series can be fitted with various optional lenses for different field of view. All lenses are field replaceable and allow for long distance, wide angle or close views.

Duo-vision technology

The HotFind series can take high quality "Duo Vision” images which aids better interpretation through thermal and visual blending. The user can move the infrared image overlay and alter the transparency to suit their application.

Bluetooth

Users can add voice annotation to the thermal images via a Bluetooth headset. The recording can be saved with the thermal image and can be played back in the headset or using the SatIrReport software.

USB real time thermal video recording

Full radiometric thermal data can be transferred via the USB2.0 interface to a PC in real-time for analysis and reporting in the ReportIR USB software.

Tripod Mounting

With the standard 1/4”_20 mounting socket, the HotFind-VR&LR can be attached to a tripod easily, that the HotFind-VR&LR can be fixed onto a stand for monitoring applications. Add the optional AC adapter and the user can use the HotFind-VR&LR for continuous monitoring.

3.5”Tilting LCD

Users can adjust the angle of the LCD for the best viewing angle.

The Tilting design also provides protection for the LCD while the camera is not in use.
