Ses Datalogger USB SLDL20 Triplett
Ses Datalogger USB SLDL20 Triplett

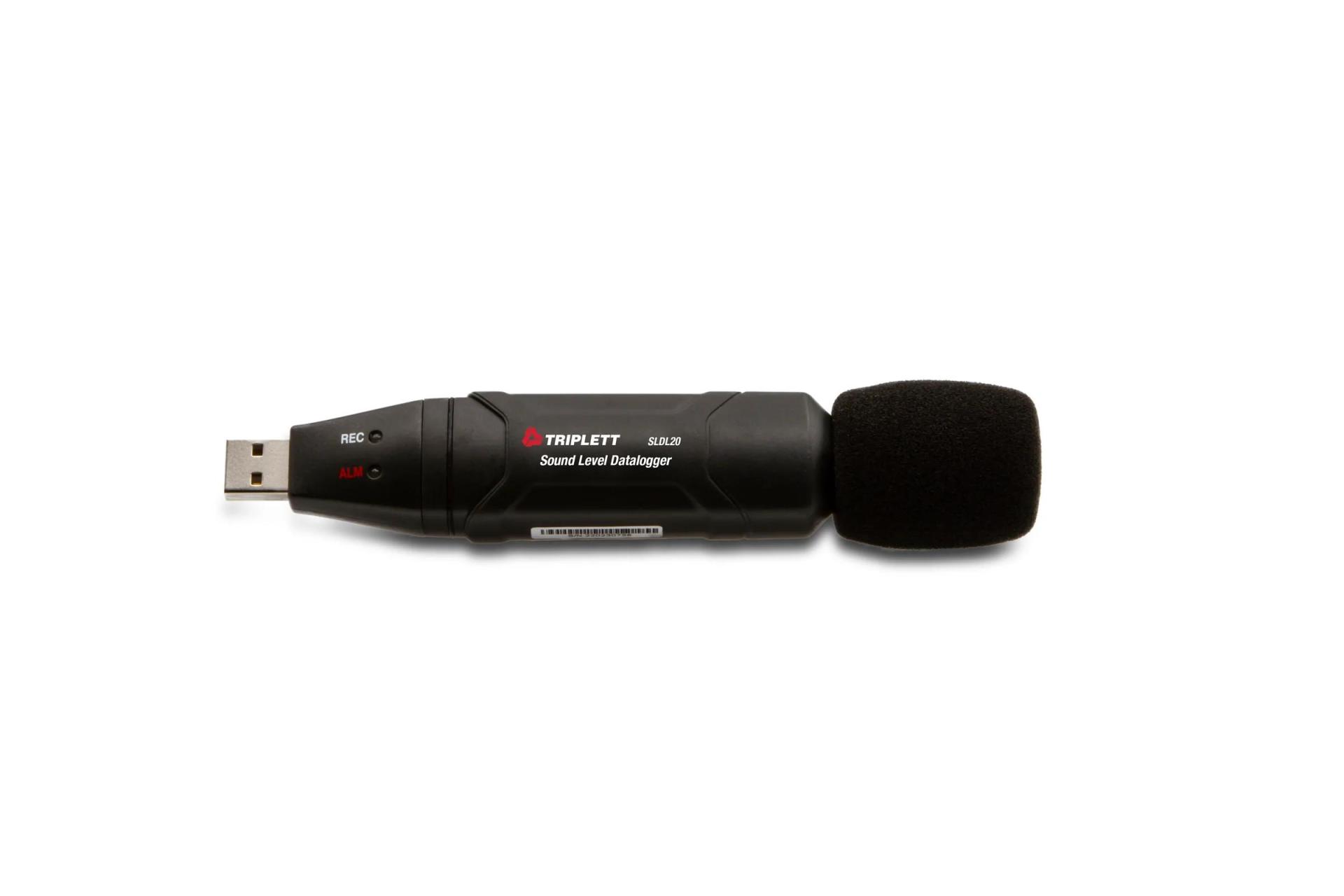

he Triplett SLDL20 USB Sound Level Datalogger can be used to test and
verify sound levels for worker safety (OSHA), community noise
ordinances, night clubs/concerts, airports, mines, athletic events,
construction sites, vehicle testing, wind farms, new product noise
reduction, and other applications. The Sound Level Meter meets IEC
61672-1 Class 2 with ±1.4dB accuracy. It can datalog up to 129,920
readings with user programmable sampling rate (1 second to 24 hours) and
date/time stamp. It features a 30 to 130dB range plus A and C weighting
with selectable fast/slow response time. Additional features include:
user programmable high/low alarms, 2 LEDs that display operation, alarm,
battery, and memory status, Min/Max, and automatic or manual start.
Includes wind screen, 1/2 AAA battery (Triplett 37-66), and software.
- Records up to 129,920 readings with user programmable sample rate
- Meets IEC 61672-1 Class 2 standards
- ±1.4dB accuracy
- 30 to 130dB range
- A and C weighting
- Selectable fast/slow response time
- User programmable high/low visual alarms
- 2 LEDs display operation, alarm, battery, and memory status
- Min/Max stores/recalls highest and lowest readings
- Manual or Automatic start time
- Includes wind screen, 1/2 AAA battery (Triplett 37-66), and software
| SLDL20 | |
| Measurement Range | 30 to 130dB |
| Bandwidth | 31.5 to 8kHz |
| Resolution | 0.1dB |
| Accuracy | ±1.4dB |
| Standards | Meets IEC 61672-1 Class 2 |
| Frequency Weighting | A and C (selectable) |
| Response Time | Fast: 125ms / Slow: 1s |
| Interface | USB |
| Memory | Datalogs up to 129,920 data points |
| Sample Rate | 1 second to 24 hours |
| Power | 1/2 AAA Battery (Triplett 37-66) |
| Dimensions | 5.1 x 1.1 x 0.9" (130 x 30 x 25mm) |
| Weight | 1oz (20g) |
