Sıcaklık Data Logger LOG200 31.1057.02
Highlights:
Product specification

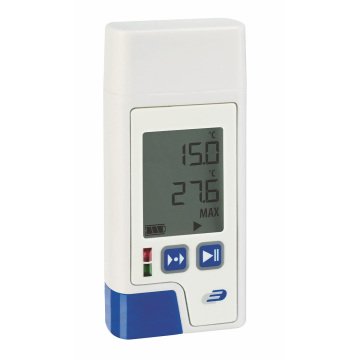

The LOG200 allows you to accurately
monitor and record temperature, whether transporting delicate products,
cold stores, server rooms, or mandatory test protocols. Even the
temperature in living rooms can be controlled over longer periods of
time.
The logger can record up to 150,000 records. Via a USB interface, the
determined data can be automatically output as a PDF file to your PC. A
measuring interval of 15 minutes is pre-programmed. Optionally, you can
download a software for configuration. Then the storage interval can be
set from 10 seconds to 24 hours.
If certain values exceed or fall below set ranges, you will be alerted
by an alarm. An integrated motion detector records and documents
vibrations, for example, when moving, or when opening and closing
windows or doors.
Below the display is a status and alarm LED light.
The device has a maximum and minimum values, as well as an AVG function and a time marker.
When values exceed or fall below certain set ranges, an alarm is triggered.
The logger is jet-proof to IP 65 and complies with EU standard 12830.
The device is entirely made in Germany. A ISO certificate is included.
Function
- For monitoring the temperature
- LED status and alarm
- Memory for 150.000 records
- MAX/MIN/AVG function, time marker function
- Plug and Play - no software required (pre-programmed 15 minutes interval)
- Automatic output as PDF-file, optional configuration software download
- Configurable storage interval (10 sec. up to 24 hrs.)
- HI/LO alarm, motion sensor for shock recording e.g. change of location or door and window opening
- Jet-proof to IP65
- Compliant with EN 12830
- USB Interface

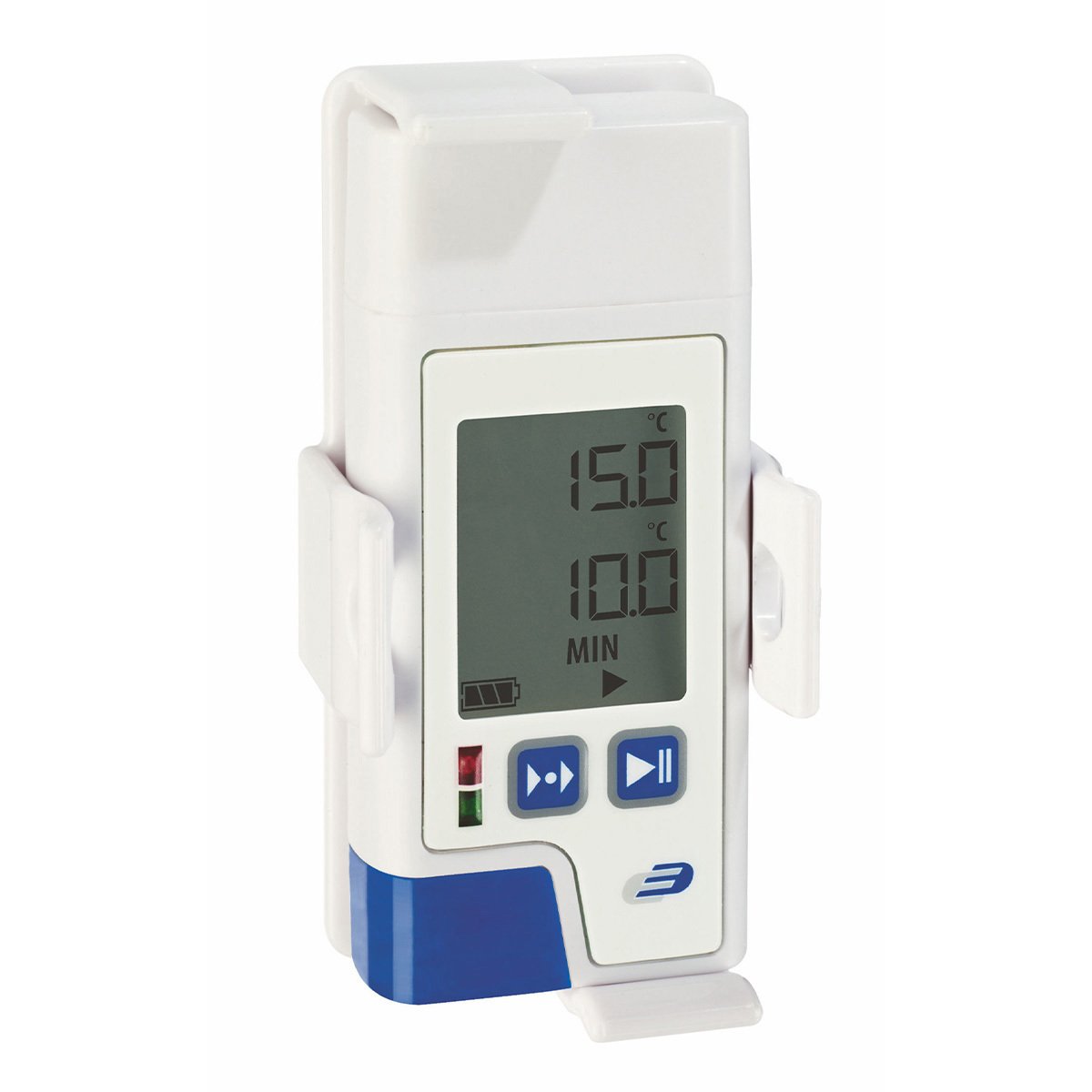

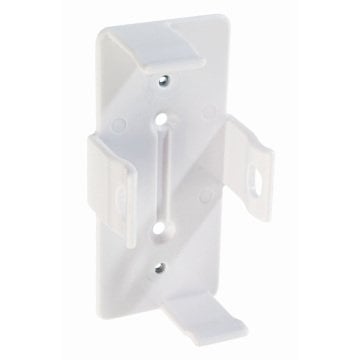

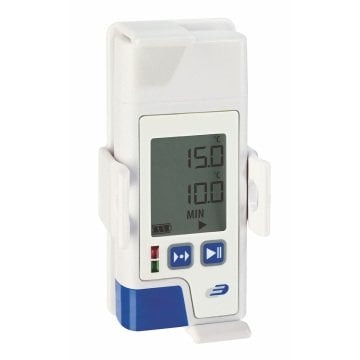

- With wall mounting holder, ISO certificate included
- Made in Germany
Technical data
| Delivery contents | Data logger, wall mounting holder, battery, ISO certificate, instruction manual |
| Measuring range temperature | -40...+70°C (-40...+158°F) |
| Material | Plastic |
| Power consumption | Batteries |
| Assembling | Wall mounting |
| Batteries included | Yes |
| Batteries | 1 x 3.6 V 1/2 AA |
| Dimensions | (L) 43 (49) x (B) 21 (32) x (H) 92 (98) mm |
| Weight | 52 g |
