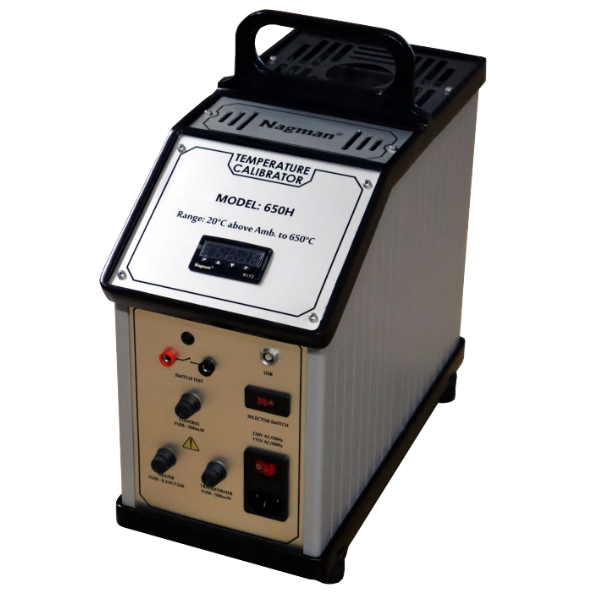

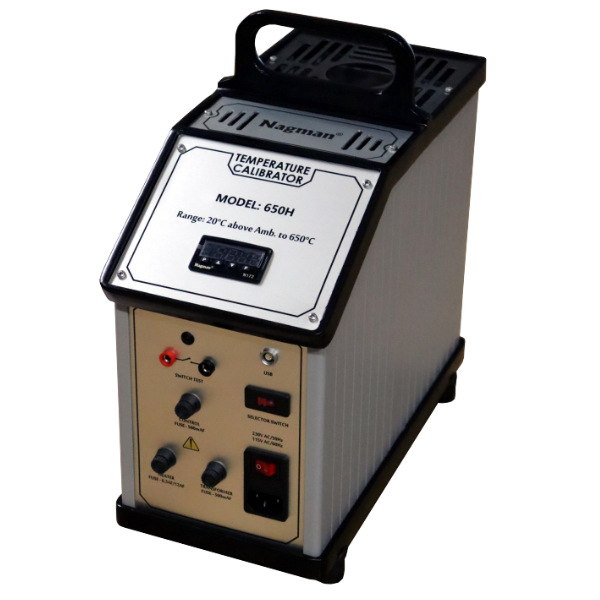

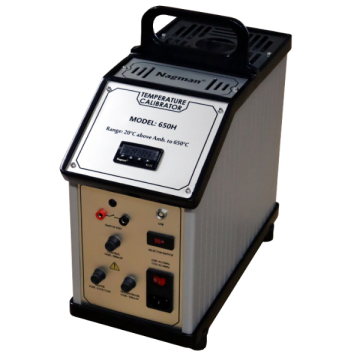

Sıcaklık Kalibratörü Kuru Blok tip 650H
Sıcaklık Kalibratörü Kuru Blok tip 650H
Spesifikasyonları
- Heavy Duty Portable / Bench-top Model
- Rugged Field Use & for Calibration at Site
- Auto-tune PID Control
- Switch Test facility
- Fast and Reliable
- Improved Accuracy, Resolution & Stability
- Interchangeable Thermowell Inserts, Single / Multihole
- Meets CE Norms
- Heavy Duty Models with an array of Interchangeable/Multihole Thermowells
- Ideal for quick/fast Site Calibration of RTDs/TCs/Bi-Metal Thermometers, Temperature Switches/Indicators etc. in Industrial & Marine Applications
- Meets the requirements of “Safety of Life at Sea” (SOLAS IX Maintenance Regulations) & “International Safety Management” (ISM)
Spesifikasyonları
- Range 50°C to 650°C
- Resolution 0.1°C
- Accuracy ±1.2°C
- Stability ±0.5°C (650-H); ±0.6°C (650-H2)
- Stabilisation Time 15 Minutes
- Well Diameter 30 mm
- Immersion Depth 110 mm (650-H); 190 mm (650-H2)
- Heating Time (Ambient to max.) (approx.) 20 Minutes (650-H); 40 Minutes (650-H2)
- Cooling Time Max. (to 100°C) (approx.) 60 Minutes (650-H); 100 Minutes (650-H2)
- Multihole Thermowell Multihole to suit 2 x ¼” & 1 x ½” Probes. Other Sizes available as optional
- Switch Test facility/Supply Provided / 5V DC (open)
- Power Supply/Consumption 230V AC / 50 Hz / 1200 W / 1400 W (650-H2)
- Instrument Dimensions (L x D x H) 160 x 330 x 350 mm (650-H); 160 x 365 x 450 mm (650-H2)
- Instrument Weight 8.5 Kg. (650-H) 11 Kg. (650H-2)
