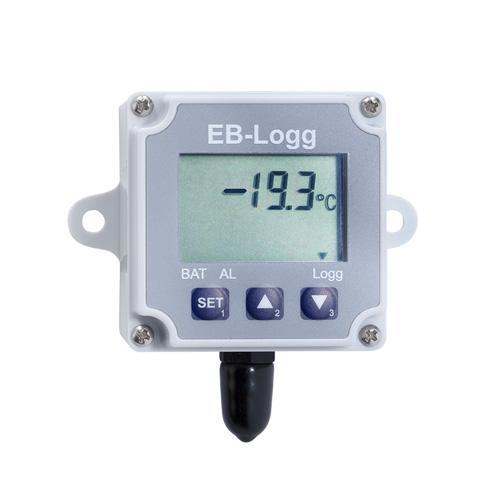

Sıcaklık-Logger EB-Logg 80K / -KK/ -KH

The measuring devices are with the high-precision sensor are professional devices for use in:

• •  production and server rooms

• •  Cooling chain monitoring

• • Furnaces

• • Museums and storerooms

• •  Etc.

• Specification

  Measuring range
  EB-Logg 80K -30.0 ... +60.0 °C EB-Logg80KH -50.0...+150.0°C
  EB-Logg 80KH...SMB1... -50... +400 °C EB-Logg 80KH...SMB2... -200... +500 °C EB-Logg 80KH...SMB4... -200.0... +150.0 °C

  Resolution 0.1 °C or 1 °C Precision (±1Digit):

  EB-Logg 80K ±0.5 °C
  EB-Logg 80KH ±0.5 °C ± 0.2% v. M.W. EB-Logg 80KH...SMB1/2/4 ±1 °C ± 0.2% v. M.W.

• •  Different sensor constructions

• •  Pt 1000 resistance sensor

• •  Measuring range from up to -200 to +600°C

• •  Double display and 3 operating keys

• •  Large memory with 250,000 data sets

• •  Up to 64 recording series can be stored

• •  Independent operation through integ. battery

• •  Networkable via EASYBus: up to >100 devices via 2 wire bus up to 1000 m distance

• •  Waterproof (IP67)

• •  Robust, long battery life

• •  Acc. DIN EN 12830

• •  Gem. DIN EN 12830

• •  Suitable for cold stores according to directive

  92/1/EEC

• •  Made in Germany

  Özellikler

  The EB-Logg 80 can be configured, started and stopped via keys. It is possible to record a maximum of 64 recording series (start/stop processes) together with a total of 250,000 data records (each consisting of time stamp and temperature)

  The configuration can also be done with the comfortable software GSOFT40k via EASYBus. Thereby the stopping of the logger by the keys can be blocked to prevent unauthorized persons from manipulating the recording.

  The unique combination of battery operation or bus operation with supply from the EASYBus allows fail- safe data recording.

  .

Display

Interface Bus load

Battery-Life

two 41⁄2-digit LCD-displays
(ca. 7 and 5.8 mm)
EASYBus
corresponds 2 EASYBus –basic loads Depending on the set measuring cycle, approx. 5 years (at 15 minutes and nominal temperature).

Measured value memory 250.000 data records Measuring cycle 4 seconds to 5 hours (18000 seconds) Storage type.

Cyclic logger

Ring memory Logging period

Alarm function

- recording can be activated via start/stop functions (e.g. keystroke, limit values)
- up to 64 independent recording series are possible.
The logger runs continuously; as soon as the entire memory is full, the old data is overwritten again from the beginning. Depends on the measuring cycle:
e.g. 521 days with 3 min. measuring cycle, 7.1 years at 15 min. measuring cycle.
Alarm levels within the measuring range and alarm delay (0 to 500 min.) adjustable.

Nominal temperature 25 °C
Working temperature -30.0 ... +60.0 °C Storage temperature -30.0 ... +70.0 °C Housing

Dimensions 48.5 × 48.5 × 35.5 mm (L × W × H) without sensor and connector

Type Housing made of ABS, transparent polycarbonate window, splash-proof

according to IP65 (except protection head). Directives / Standards: The devices comply with the

following Council Directives on the approximation of the laws of the Member States: 2014/30/EU -EMV Directive 2011/65/EU -RoHS

Applied harmonized standards:
EN 61326-1 : 2013 Interference emission class B, interference

immunity according to table 1, additional error: <1%.
