Sıcaklık, Nem ve hava basıncı için Data logger LOG220 31.1059.02
Highlights:
Product specification
The LOG220 allows you to accurately
monitor and record temperature, humidity and air pressure, whether
transporting delicate products, cold stores, server rooms or mandatory
test protocols. The cause of damp or mould damage in living spaces can
also be determined on the basis of recorded climate values.
The logger can record up to 60,000 records. Via a USB interface, the
determined data can be automatically output as a PDF file to your PC. A
measuring interval of 5 minutes is pre-programmed. Optionally, you can
download a software for configuration. Then the storage interval can be
set from 10 seconds to 24 hours.
When values exceed or fall below certain set ranges, you will be alerted
by an alarm. An integrated motion detector records and documents
vibrations, for example when moving or opening and closing windows or
doors.
Below the display is a status and alarm LED.
The device has a maximum and minimum values, as well as an AVG function, a dew point indicator and a time marker.
The logger is entirely made in Germany. A factory certificate is included.
- For monitoring the temperature (precision depending on the measuring range from +- 0,5 °C), humidity (precision from +- 3%) and atmospheric pressure (precision from +- 1hPa)
- With LED status and alarm
- Memory for 60.000 records
- MAX/MIN/AVG function, dew point, time marker function
- Plug and Play - No software required (pre-programmed 5 minutes interval)
- Automatic output as PDF-file, optional configuration software download
- Configurable storage interval (10 sec. up to 24 hrs.)
- HI/LO alarm, motion sensor for shock recording e.g. change of location or door and window opening
- USB Interface

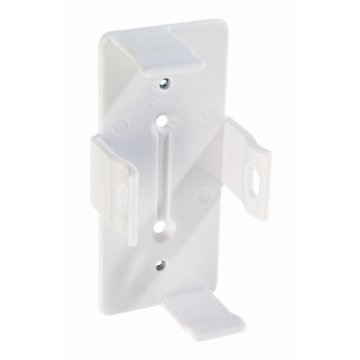

- With wall mounting holder

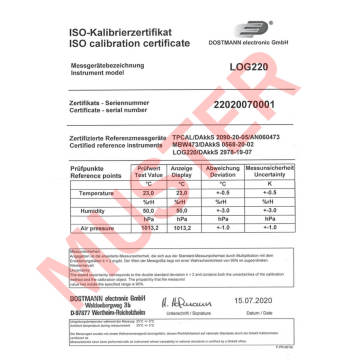

- Factory certificate included
- Made in Germany
Technical data
| Delivery contents | Data logger, ISO certificate, battery, instruction manual |
| Measuring range humidity | 0…100 % |
| Measuring range temperature | -40…+70°C |
| Material | Plastic |
| Power consumption | Battery |
| Batteries included | Yes |
| Batteries | 1 x 3,6 V 1/2 AA |
| Dimensions | (L) 43 (49) x (B) 21 (32) x (H) 92 (98) mm |
| Weight | 52 g |
