Sivri uçlu pH elektrod LabSen® 251 yar-katı maddeler için

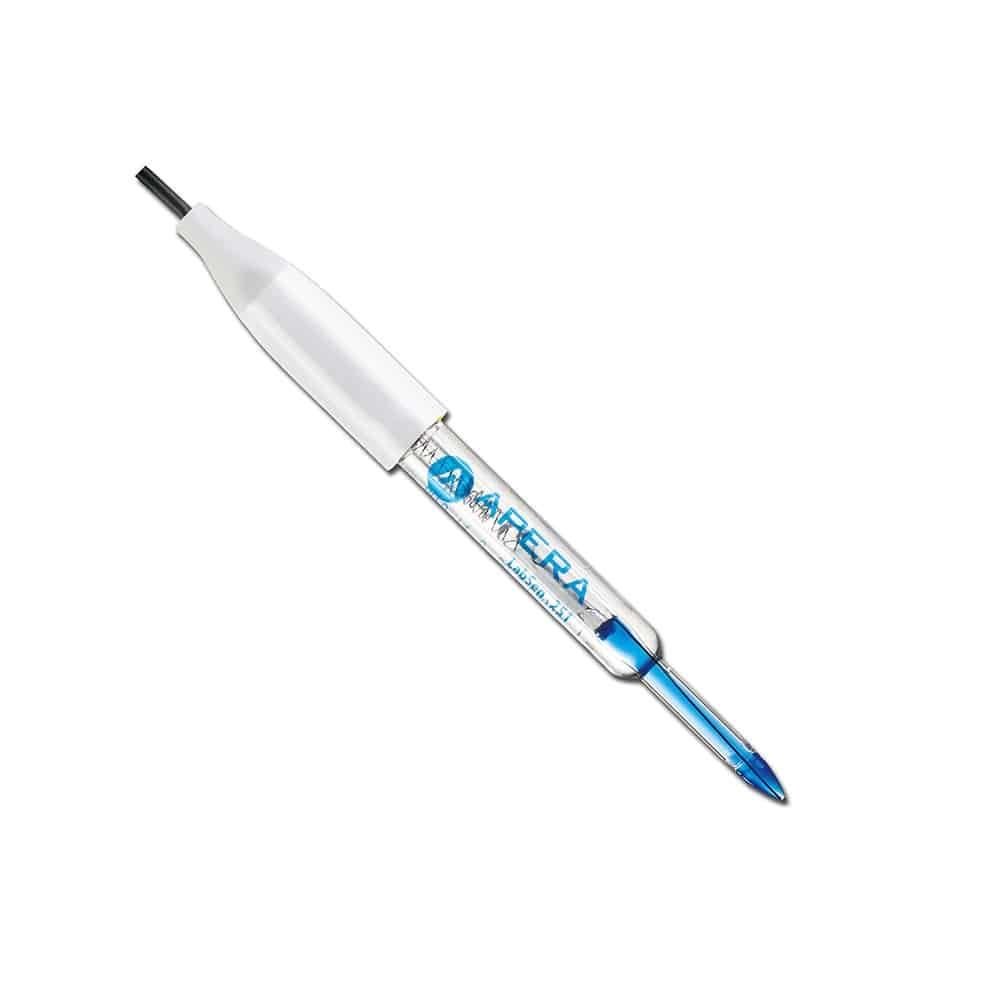

The LabSen® 251 spear pH electrode from Apera Instruments is manufactured using proprietary Swiss sensor technology and materials. The electrode shape is specially designed to reliably and accurately measure the pH of soft and semi-solid (cheese, butter, dough, fruit, etc.) and general liquid samples.

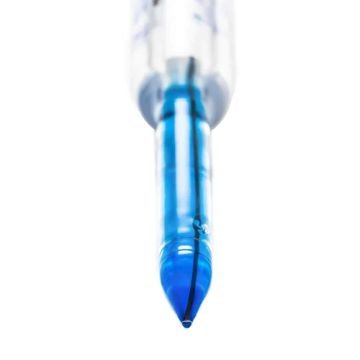

LabSen S-Type Pointed Glass Diaphragm – Thanks to the low-resistance and rugged pointed glass diaphragm, the electrode delivers fully stabilized readings in 15 to 30 seconds, yet is up to 10 times more robust than conventional products, significantly reducing the likelihood of the electrode breaking during impact or when penetrating samples.
Polymer electrolyte with hole diaphragm structure – Allows direct contact with test samples without clogging the diaphragm structure. The electrolyte does not need to be refilled.
Long-life reference system – The LabSen 251 pH electrode uses a long-life reference system consisting of a glass tube, AgCl and a reference silver wire. The top of the thin glass tube is filled with cotton, which prevents a reaction between AgCl and electrolyte when the temperature changes. It improves the stability of the reference electrode and extends the life of the electrode.
- Tip electrode for penetrating soft/semi-solid samples such as cheese, butter, dough, fruit, etc.
- Long-life reference system that improves the stability of the reference electrode and extends the life of the electrode
- Maintenance-free polymer electrolyte with hole-diaphragm structure
- Blue gel electrolyte, does not flow and does not cause air bubbles
- Impact-resistant diaphragm, no risk of electrode rupture during normal use
Measuring range | (0 ~ 14) pH | Electrolyte | Polymer |
Recommended operating temperature | (0 ~ 80) °C | Storage solution | 3M KCl |
Shank material | Lead free glass | Electrode dimension | Electrode (Ø12×100) mm
Measuring tip(Ø6×35) mm |
Glass membrane type | S | Membrane resistance | <250 MΩ |
Reference system | Long Life | Connection | BNC |
Diaphragm | Ceramic+single pore | Cable | Ø3mm×1m |
