3 sıcaklık transmiterli başlangıç seti WEATHERHUB OBSERVER 31.4010.02 beyaz
Highlights:
Product specification
Use the WEATHERHUB OBSERVER web platform for professional temperature monitoring and documentation.
The system is ideal for pharmacies, laboratories or other professional applications.

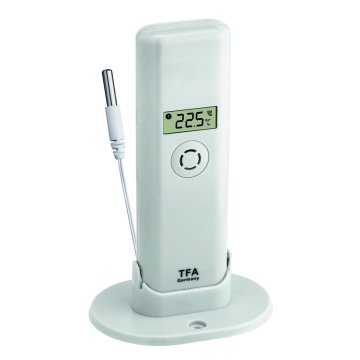

This starter set includes 3 professional temperature transmitters for
measuring the ambient temperature indoors or outdoors. At the same time,
the temperature can be monitored in cooling and air conditioning units
or in liquids via integrated, waterproof cable sensors.
The wireless sensors transmit their measured values directly to a server
via the gateway module and the Internet. All data remains available
for at least 90 days.
Via the WEATHERHUB OBSERVER platform www.wh-observer.de, the measured
values can be retrieved any time and anywhere worldwide via PC, tablet
or smartphone and numerous additional functions can be used.

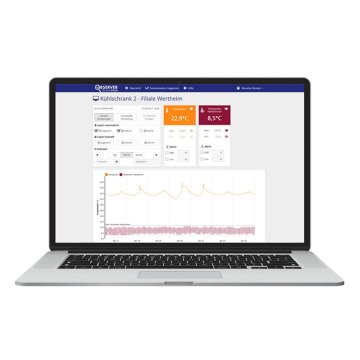

The values are displayed as a clear diagram that can be set to specific
time intervals (day, week or month). The export of the data can be done
graphically as a PDF or as a CSV file in text format. The export files
can also be sent by e-mail.
The monitoring can be automated and there are extensive possibilities to set alerts.
The platform is free and requires no additional fee or subscription.
Up to 50 transmitters can be connected, including for monitoring humidity.
Function

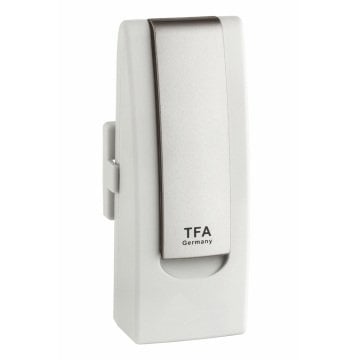

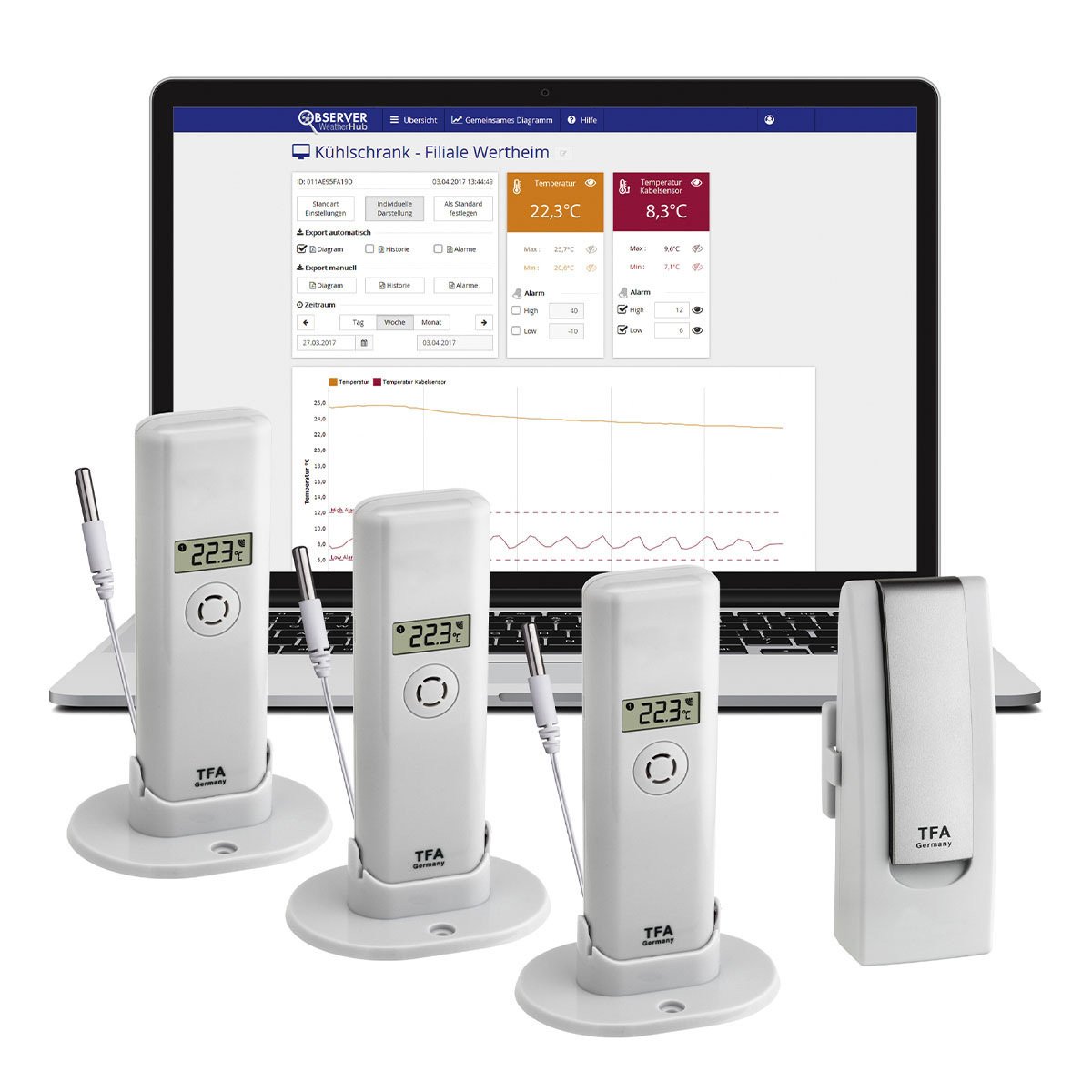

- Starter set to be used with the WEATHERHUB OBSERVER web monitoring system, consisting of 3 temperature transmitters with cable sensor, gateway, power adapter and LAN cable
- For professional monitoring of the ambient temperature at the location of the transmitters (inside or outside) and simultaneous monitoring of other measuring points via the waterproof cable sensor
- Ideal for pharmacies, laboratories, commerce and industry, residential, work, storage and cooling rooms, swimming pools, agriculture, horticulture and livestock (terrariums, aquariums, fish farming, incubators etc.)
- The measuring data will be sent via the gateway and the Internet directly to a server
- Easy installation and operation
- Display of the recorded data as a clear diagram, adjustable to fixed time ranges - day, week or month
- Availability of the data on the server for min. 90 days
- Export of data as PDF (graphically) or as CSV file (text file)
- Automation of the monitoring possible, export of the data via e-mail
- Extensive possibilities for setting alerts (via e-mail)
- The WEATHERHUB OBSERVER platform is free of charge and does not require any additional costs or subscription fee, costs will only arise for the required hardware and, if necessary, for the Internet connection
- Completely browser-based and therefore almost platform-independent, can be used with Windows, Apple and Linux-PCs or with Android, iOS and Windows Phone
- Worldwide use possible (Internet connection required)
- Language setting in German or English
Technical data
| Delivery contents | Gateway, 3 temperature transmitters, waterproof cable sensors, power adapter, LAN cable, instruction manual, mounting material, vacuum cup |
| Measuring range temperature | -30…+60°C (-22…+140°F) |
| Maximum range | 200 m |
| Transmitter included in delivery | 3x 30.3313.02 |
| Transmission frequency | 868 MHz |
| Material | Plastic |
| Power consumption | Battery, power adapter (EU plug) |
| Batteries | 6 x AAA 1.5 V (3 transmitters) |
| Batteries included | No |
| Dimensions | 40 (45) x 28 (33) x (H) 104 mm |
| Weight | Gateway 66 g, set 592 g |
