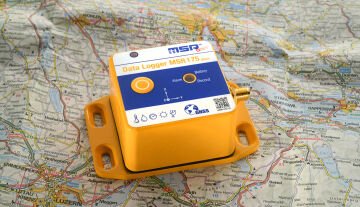

Taşıma Data Loggerı GPS konum tesbitli: MSR175plus Şok ve İklimlendirme özellikli

Taşıma Data Loggerı GPS konum tesbitli: MSR175plus Şok ve İklimlendirme özellikli

Kategori
3-eksen şok kaydedici , Titreşim Vibrasyon Ölçerler
Marka
MSR
Stok Kodu
9JJV8ZUXLJ
Ürün Bilgisi
Ürün Bilgisi
Taşıma Data Loggerı GPS konum tesbitli: MSR175plus  Şok ve İklimlendirme özellikli
  • High-speed shock logger with two simultaneously measuring internal acceleration sensors
  • Shock measurement mode: measurement always with ±200 g at 6400 Hz and with ±15 g at 1600 Hz simultaneously
  • 1 internal temperature, humidity, pressure and light sensor each; measurement frequency/storage rate every 10 min.
  • Setting of limit values
  • Installed memory is capable of storing over 4 million measured values

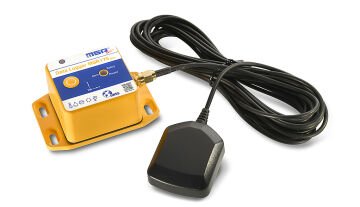

  • GPS/GNSS receiver
  • Rechargeable 2400 mAh lithium-polymer battery, recording time with activated GPS tracking approx. 8 weeks, without GPS tracking at least 1 year
  • Removable battery
  • Coloured LED for status indication

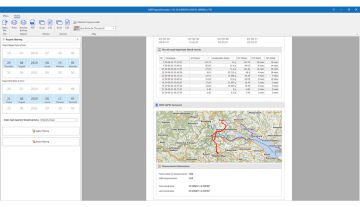

  • MSR175 software package with Dashboard software for easy start-up of the data logger, MSR ReportGenerator for automatic report generation and MSR ShockViewer for detailed analysis of shock events

Technical data of the sensors

INTERNAL SENSOR WORKING RANGE ACCURACY (MAX. DEVIATION) MEASUREMENT/STORAGE RATE
3-axis-acceleration ±15 g and ±200 g
(-20…+65 °C)		 ±15 g sensor±0.15 g (0…5 g, +25 °C) ±0.3 g (5…15 g, +25 °C)
±200 g sensor
±2 g (0…15 g, +25 °C)
±5 g (15…100 g, +25 °C)
±10 g (100…200 g, +25 °C)		 1600/s(±15 %)





6400/s (±15 %)
Temperature -20…+65 °C ±0.5 °C (-10…+65 °C) every 10 min.
Relative humidity
 0…100 % rel. humidity
(-20…+65 °C)		 ±2 % rel. humidity
(10…85 %, 0…+40 °C)
±4 % rel. humidity
(85…95 %, 0…+40 °C)		 every 10 min.
Air pressure 0…2000 mbar absolute
(-20…+65 °C)		 ±2.5 mbar
(750…1100 mbar
absolute, +25 °C)		 every 10 min.
Light 0…65’000 lx max. sensitivity at 500 nm every 10 min.

General technical data of the MSR175plus transport data logger


Memory capacity: Over 4,000,000 measurement values.
GNSS position data: GPS (optional: GLONASS, Galileo, Beidou)
Medium: Air
Key: Start measurement/retrieve status/test GPS reception.
Power supply: Lithium-polymer battery 2400 mAh, rechargeable via USB connection, recording time with activated GPS tracking approx. 8 weeks, without GPS tracking at least 1 year.
Interface: USB
Software package: MSR175 Dashboard software, MSR ReportGenerator, free MSR ShockViewer basic version. A fee-based MSR ShockViewer Pro Version will be available at a later stage. System requirements: Windows 7 or higher, USB port.
Operating conditions:
Temperature: -20…+65 °C
Storage conditions:
Temperature:
Humidity:		 +5…+45 °C (ideal storage condition for the battery)
10…95 % relative humidity, non-condensing
Standards: The MSR175plus complies with EU-Directives RoHS/WEEE.
