TempStick Probe 200 200°C harıci sensörlü datalogger
Temperature data logger with external sensor for high temperatures up to 200°C

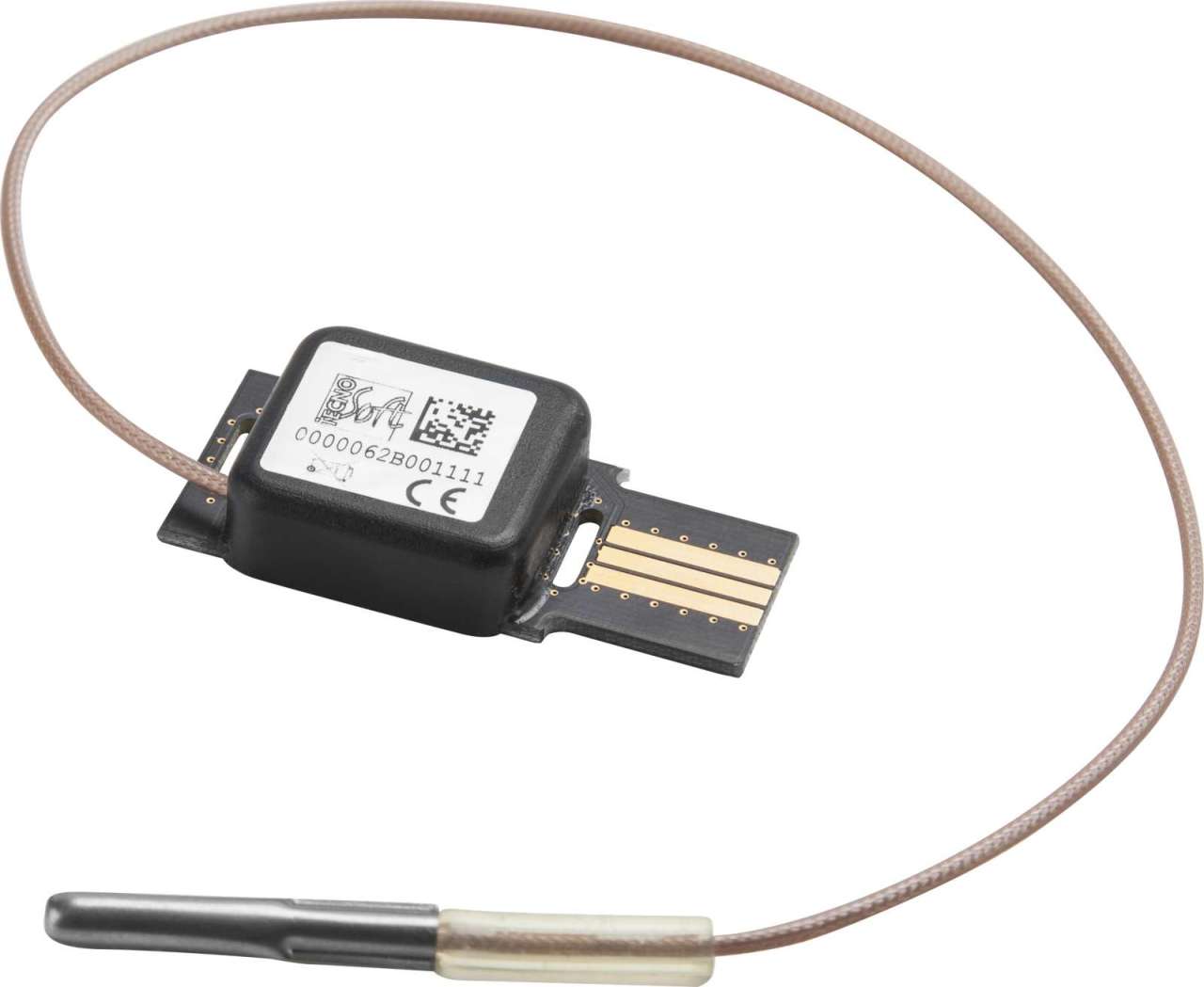

TempStick Probe 200 temperature data logger is a miniaturized temperature recorder with cable and rigid metal probe of verious lengths, calibrated in a 120°C span from 0°C up to 2o0°C; it has a wide range of monitoring applications especially in the food industry, for continuous monitoring during cooking processes. Its reduced size and no need of external power supply make the TempStick system extremely versatile. The data logger can be supplied with calibration certificate with Accredia (Italian reference center, NIST equivalent) traceability.
The rigid metal probe is made with stainless steel AISI 316L, food grade, and is available in different types:
- 3 cm length, 4 mm diameter, rounded tip for immersion (ordering code 03)
- 8 cm length, 4 mm diameter, rounded tip for immersion (ordering code 04)
- 3 cm length, 4 mm diameter, pointed tip for penetration (ordering code 05)
- 8 cm length, 4 mm diameter, pointed tip for penetration (ordering code 06)
Cable is 2 mm diameter and has a standard length of 50 cm but it can be ordered longer.
Available also in the following versions:- TempStick: with internal sensor
- TempStick Probe with handle: with cable, rigid probe, handle
- TempStick Probe: with cable, rigid probe
- TempStick Probe with thin cable: with thin cable, rigid probe
- TempStick Probe IP68: with cable, rigid probe, protcted in an IP68 box
- TempStick Probe -80: with cable, rigid probe, for temperatures from -80°C
- Technical specifications
Dimensions 50 X 24 X 10 (mm)
Probe dimensions Cable 2000 l X 3 Ø (mm) - Probe 85 l X 4 Ø (mm)
Weight 65 g
Temperature range -30 °C ÷ +60 °C
Sensor temperature range -40 °C ÷ +90 °C
Standard calibration points (temperature) -30/0/20/60°C
Extra calibration points (temperature) Within the range -40 °C ÷ +90 °C
Temperature resolution 0,03 °C
Temperature accuracy ± 1 °C without certificate / ± 0,25 °C with Accredia traceable certificate (valid in the
calibration range)
Memory (n. of acquisitions) 2.730
Acquisition step From 1 every minute to 1 every 255 minutes
Battery type 3.0V CR2032 lithium (2017 IATA DGR: PI970 Section II, < 4 cells)
Battery life Up to 10 years or 3 millions of acquisitions
Protection degree IP63
Accessories TecnoStick Interface, SRI, FLI
