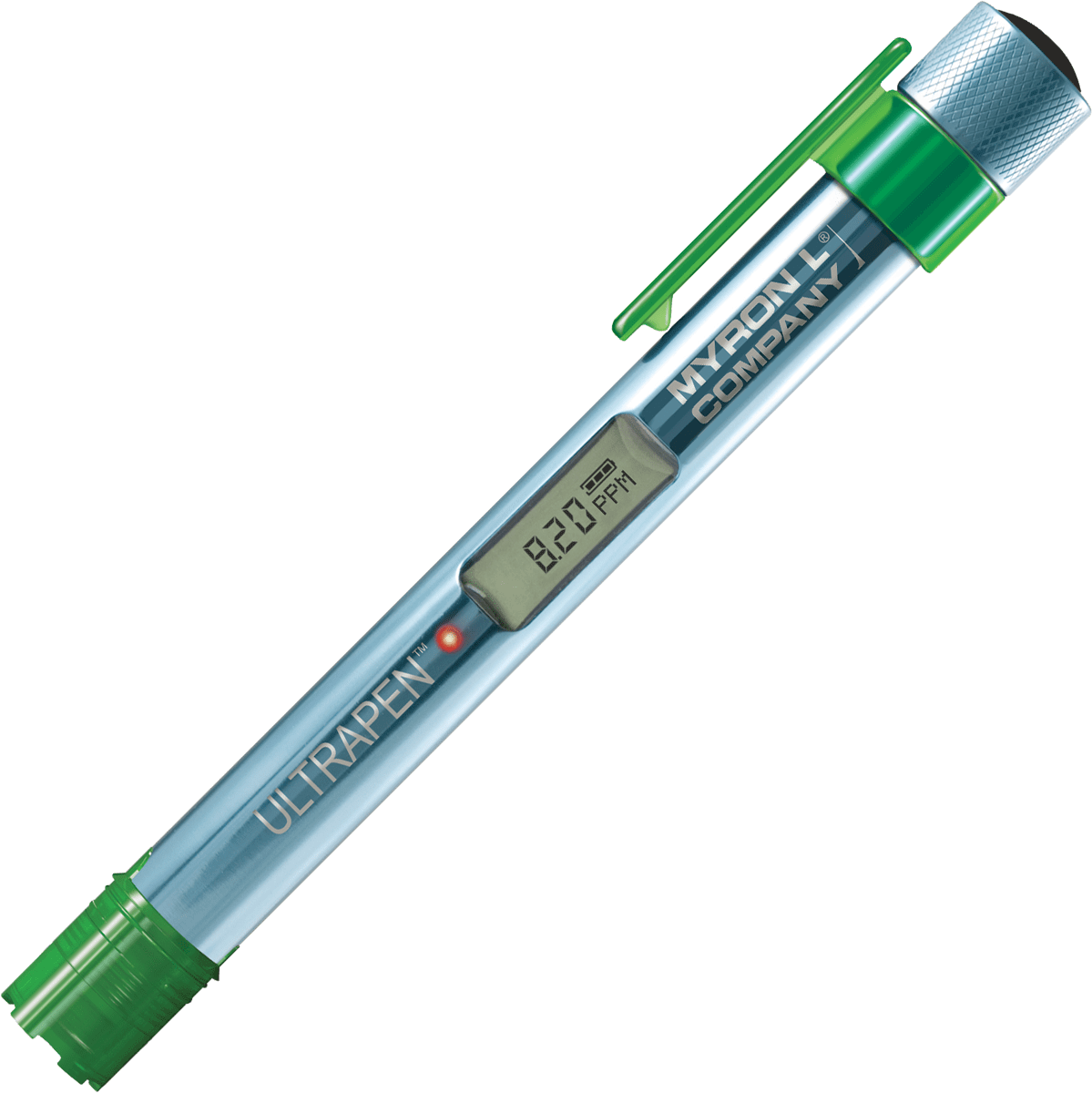

Ultrapen PT5 Çözünmüş Oksijen ve Sıcaklık Kalemi
Ultrapen PT5 Çözünmüş Oksijen ve Sıcaklık Kalemi
ULTRAPEN™ PT5 Benefits:
- Reliable Repeatable Results
- Accurate
- Affordable
- Easy to Use
- Rugged Design
- Ensure Product Quality
- Reduce Waste
- Protect the Environment
ULTRAPEN™ PT5 High Performance Features:
- Industry Leading Accuracy
- Display DO in Concentration, % Saturation, or Both
- Adjustable for Altitude and Salinity
- 3 Calibration Methods: Air, Water and 0 ppm DO
- Dynamic Membrane Temperature Correction
- Live or Hold Mode – User Selectable
- Auto-Off Feature – User Adjustable
- Proprietary Sensor Design
- Easy to Use – One Button Control
- Rugged Design with Aircraft Aluminum Body
- Durable, Epoxy Encapsulated Electronics
- Waterproof
- Powered by One N Type Battery (Included)
ULTRAPEN™ PT5 Comes With:
- PT5 Pocket Tester Pen – Battery Installed
- User Replaceable DO Sensor – Installed
- Membrane Cap Assemblies – 3 each
- DO Reference Electrolyte Solution – 2 oz.
- Syringe with Tip
- Protective/Hydration Cap
- Pocket Clip
- Quick Start Guide
ULTRAPEN™ PT5 Measurement Modes:
| MODE | METHOD OF MEASUREMENT |
| Hold | Displays real-time readings until stable or 3 minutes, whichever comes first, then displays final readings. |
| LIVE | Displays real-time readings continuously for up to 5 minutes. |
ULTRAPEN™ PT5 Parameter Modes:
| MODE | PARAMETER MEASURED |
| DO Default | Display alternates between DO Concentration in ppm, DO Saturation in % and Temperature. |
| DO Concentration | Display alternates between DO Concentration in ppm and Temperature. |
| DO Saturation | Display alternates between DO Saturation in % and Temperature. |
ULTRAPEN™ PT5 Specifications:
| Specifications | DO Concentration | DO Saturation | Temperature |
| Ranges | 0-20 ppm | 0-200% | 0 – 71°C / 32 – 160°F |
| Accuracy1 | ± 0.2 ppm or ± 2% of the reading, whichever is greater (up to 40ºC) | 0.0% to ≤ 100.0%: ± 20 counts; >100%: ± 2% of the reading. | ± 0.1°C |
| Resolution | 0.01 ppm | 0.1% | 0.1°C/F |
| Altitude Adjustment: | -2,000 ft. to 15,000 ft. in increments of 100 ft. |
| Salinity Adjustment: | 0 – 50 ppt in increments of 1 ppt |
| Time to Reading Stabilization: | 10 – 180 seconds |
| Calibration Methods: | 1 or 2 Point; 0 ppm DO Calibration Solution, Air or Water |
| Operating/Storage Temperature: | 0 – 55°C / 32 – 131°F |
| Power Consumption: | Active Mode: 30 – 140 mA, Sleep Mode: 2 µA |
| Temperature Compensation for Membrane Permeability: | Automatic |
| Physical Dimensions: | 17.15 cm L x 1.59 cm D or 6.75 in. L x .625 in. D |
| Weight: | 54 g or 1.94 oz. |
| Case Material: | Anodized Aircraft Aluminum with Protective Coating |
| Battery Type: | N type, Alkaline 1.5 V |
| Water Resistance: | IP67 and NEMA 6 |
| EN61236-1: 2006 – Annex A: 2008; 1999/5/EC Annex III | Electrostatic discharge to case of instrument may cause PT5 to spontaneously power ON. In this case, the PT5 will power OFF after several seconds. |
ULTRAPEN™ PT5 Applications:
- Municipal Drinking Water
- Municipal Wastewater Treatment
- Pool and Spa
- Industrial Water (boilers and cooling systems)
- Fruit and Vegetable Rinse
- RO Membrane
- Aquaculture
- Aquaponics
- Poultry Processing
- Poultry Drinking Water
- Industrial Canned and Bottled Food Plants
- Greenhouse
- Pharmaceutical Manufacturing
- Well Water
- Brewing/Home Brewing
ULTRAPEN™ PT5 Accessories:
Order Model:
DOSOL: 0 ppm Dissolved Oxygen Calibration Solution
- Replacement Items and Consumable Items:
Order Models:
DOM5: DO Membrane 5pk.
DOSRE: DO Sensor Replenishment Electrolyte 2 oz.
DORS: DO Replenishment Syringe w/Tip
DOM5K: DO Membrane 5pk, Replenishment Electrolyte 2 oz, Syringe w/Tip Kit.
RPT5: DO Sensor, Replacement (with 3 Membrane Cap Assemblies)
