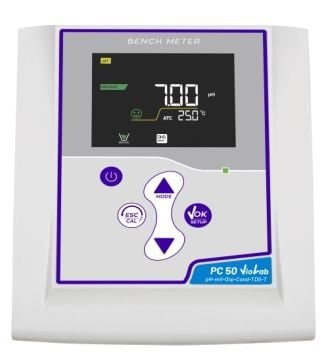

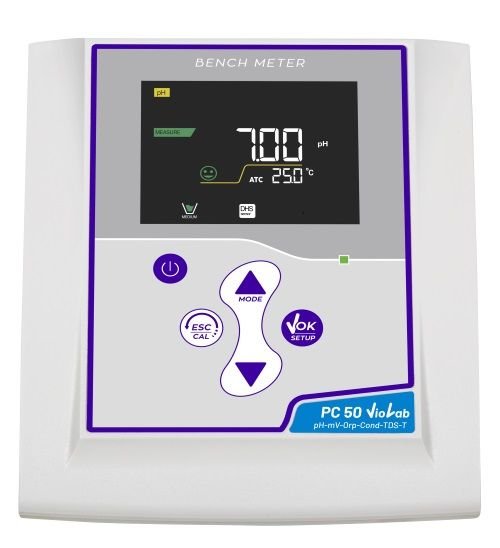

XS PC 50 ph ve İletkenlik ölçer Masa tipi
Marka
Stok Kodu
50103902
Garanti Süresi
6 Ay
XS PC 50 ph ve İletkenlik ölçer Masa tipi
Professional bench multiparameter with innovative high definition color LCD display, with possibility of brightness adjustment.
Measurement of pH, mV, ORP, Conductivity, TDS, with temperature display.
Possibility to select the parameters you want to see on the display.
The online guide in setup and calibration allows a simple and immediate use of the device.
Automatic pH calibration with USA and NIST buffers up to 3 points and 2 points defined by the user.
Automatic ORP calibration 1 point.
Automatic calibration of conductivity up to 5 points and a user-defined point.
Indication with icons of the calibrated points.
Measurement stability indicator and possibility to select 3 stability levels.
All operations are constantly monitored and signaled to the operator via the colored LED above the display and the self-diagnosis messages.
Measuring range:
pH: 0.00 ... 14.00 (0.01 pH)
mV: -1000 ... + 1000 (0.1 mV)
Cond: 0.0 µS ... 200 mS (0.01 µS - automatic)
TDS: 0.01 mg / l ... 200 g / l
Temperature: 0 ... 100.0 ° C (0.1 ° C)
Supplied as standard:
Electrode holder stand, colored buffer solutions, power supply and instructions for use.
With 201T electrode and 2301T cell, both with built-in temperature sensor and 1 m fixed cable.
Data sheet
Features
Accuracy (Cond)
±2 % f.s.
Accuracy (pH)
±0,02 pH
Accuracy (Temperature)
±0,5 °C °C
Power supply
100 - 240 V V
Temperature calibration
Yes
Temperature coefficent (max)
0,00 ... 10,00 % / °C
DHS compatibility
Yes
Temperature compensation
0,00...80,0 °C °C
Cell constant
0,1 / 1 / 10
Criteria for stability of the measure
Low - Med - High (pH)
Description
With electrode 201 T and cell 2301 T both with built-in temperature sensor and 1 m fixed cable
Dimension
160 x 140 x 45 mm
Display
High-definition, backlit colour LCD
TDS factor
0.40 ... 1.00
Warranty
3 anni
IP rating
54 IP
Buffer used indication
Yes with icons
Selectable languages
BNC - RCA
Name
PC 50 VioLab
Regulations
CE
Parameters
pH, mV, ORP, Conducibilità, TDS, Temperatura
Weight
0.38 kg
Calibration points Cond
1...4
ORP calibration points
1
PH calibration points
1...3 automatic values - 2 user values
Cond measuring range
0,00 µS ... 200 mS
mV ORP measuring range
-1000 ... +1000 mV
pH measuring range
0 ... 14 pH
TDS measuring range
0,1 mg/l ... 200 g/l
Temperature measuring range
0,0 ... +100,0 °C
Cond resolution
0,01 / 0,1 / 1 µS/cm (scala automatica) µS/cm - mS/cm
ORP resolution
1 mV
pH resolution
0,01 pH
Temperature resolution
0,1 °C
Swabs recognised Cond
84 µS - 147 µS - 1413 µS - 12,88 mS - 111,8 mS - 1 valore user
Recognised pH buffers
USA - NIST - 2 custom values
Working temperature
0 ... +45 °C
Reference temperature
+15 ... +30 °C
Cell type
2 rings
