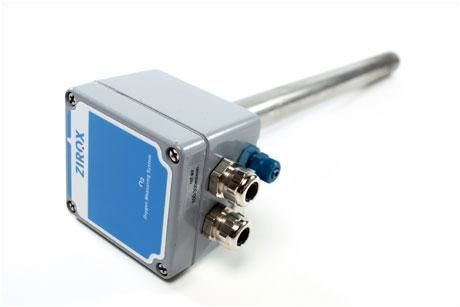

Yanma Gazı Probu SS31H

Kategori
Marka
Stok Kodu
SS31H
Garanti Süresi
6 Ay
Yanma Gazı Probu SS31H ZIROX  Almanya

General Information

ZIROX flue gas probes (SS31) are robust sensors which serve the λ-determination in large-scale firing plants as well as the measurement of oxygen partial pressure of furnace atmosphere.
The probes are calibration-, drift- and maintenance-free. During measurements in reducing atmosphere, a falsification of the gas composition caused by cooling of the measuring gas in a suction line does not occur. An integrated heater provides the working temperature. The use of high-quality components and materials guarantees high long-term stability.



Applications

  • Flue gas measurements in power plants
  • Process gas measurements

Technical Data Oxygen Probe SS31H

Length 300...1800 mm
Diameter 25 mm
Weight 1...3.5 kg
Material 1.4841
Dimension clamp head 75 x 80 x 60 mm
Clamps 5 x Phönix MBK 2,5/E
Protection degree IP52, IP65 on request
Power supply 36 V (DC oder AC)
Heater resistance AC / DC 8 Ohm
Heating current AC / DC 4.5 A
Heating power AC / DC 160 VA
Heater control max. cycle time at PWM 500 ms
Range -0.01...20.6 Vol.-% O2
Accuracy < 5 % rel. error
Working temperature 700...800 °C

Offset

-2 m...-10 mV

Sensor voltage
(5.0 Vol.-%, 800 °C)
-33.1 mV
Thermocouple type B (800 °C corresponds to 3.2 mV)
Flow measuring gas max. 10 m/s
Reference gas ambient air
Flow reference gas 5...10 l/h

Clamp assignment:
(1) Ground AGND
(2) Sensor voltage -Uz
(3) Thermal voltage +Ut
(4) Heating UH
(5) Heating UH



Mounting recommendation:

  • stuffing box or cutting ring fitting


Option:

  • Test gas channel (for in-situ check of the probe)
  • Immersion sleeve (probe protection at gas flow > 10 m/s)
